SOUND

Specifications:
Supply voltage: 5 V
Volume 85 dB
Current consumption: 30 mA max.
Frequency: 2.3 kHz ± 500 Hz
Diameter: 12 mm
Height: 9.5 mm
Case: THT

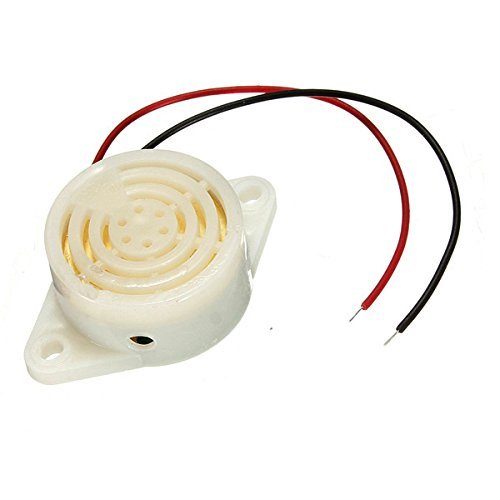

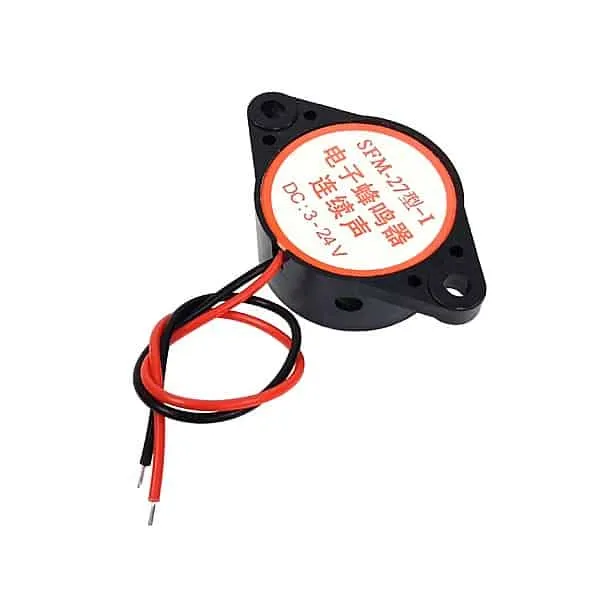

Specifications:
Alarm Diameter: 29mm
Alarm Height: 15mm
2 Mounting Holes Distance: 40mm
2 Wires length: 100mm
Diameter of mounting hole: 3.5 mm
Rated Voltage: 12V
Operating Voltage: 3-24V
Rated Current(MAX): 20mA
Min Sound Output at 10 cm: 95 DB
Resonant frequency: 3.3 kHz ± 0.5 kHz
Operating Temperature: -20～+80℃
Signal type: continuous sound
