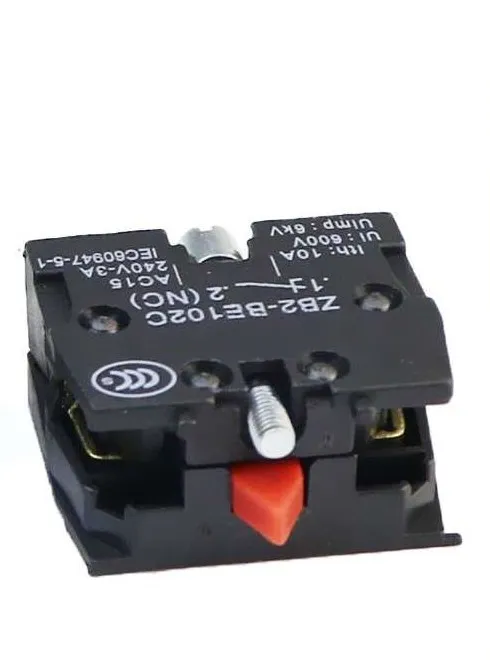

ZB2BE101/ZB2BE102 Contact Block 2-Position Latching NC contact
The ZB2BE Contact Block 2-Position Latching NC contact is a high-reliability add-on contact block from the Harmony XAC range. Designed for front mounting on XB4, XB5, XACA, and XAPS2 operators, this block is available in two configurations: ZB2BE101 (1 normally open contact) and ZB2BE102 (1 normally closed contact). Both models are ideal for 2-position latching pushbuttons and selector switches in industrial control panels.
Features:
- The 2-position latching mechanism ensures stable operation until manually reset.
- Designed to be used with other components in the ZB2 series, ensuring easy integration and flexibility.
- Built to withstand frequent operation and harsh industrial environments.
- Meets international standards for safety and reliability.
Dimensions:
Specifications:
| Parameter | Value |
|---|---|
| Contact Configuration | 1NC (ZB2BE102) |
| Mounting | Front mounting |
| Contact Operation | Slow-break |
| Mechanical Durability | 1000000 cycles |
| Rated Insulation Voltage | 600V (pollution degree 3) |
| Rated Impulse Withstand Voltage | 6kV |
| Conventional Enclosed Thermal Current | 10A |
| Operating Force | 13…15 N |
| Short-Circuit Protection | 10 A fuse (gG/gl) |
| Operating Temperature | -25°C to +70°C |
| Standards | EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 |
Applications:
- Industrial Control Panels.
- Automation Systems.
- Building Management Systems.
- Electrical Distribution Systems.
- Custom Control Stations.
- Elevator and Escalator Systems.
Package Include:
1x ZB2BE Contact-Block 2-Position Latching NO/NC contact (ZB2BE101 1NO or ZB2BE102 1NC as selected).
