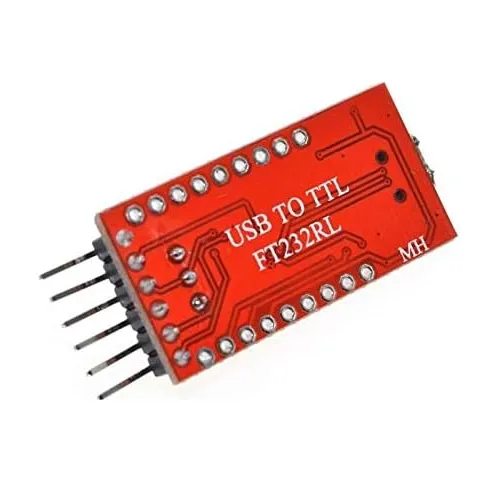

USB mini to TTL FTDI Board Module FT232RL Switchable 3.3V/5V

USB mini to TTL FTDI Board Module FT232RL Switchable 3.3V/5V

(0 review)

USB to TTL FTDI Board Module FT232RL enables serial communication with microcontrollers. It supports 3.3V/5V, TX/RX LEDs, works on Windows, macOS, Linux.

Add to cart
Buy now
Add to wishlist
Price
155.00 LE 155.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
USB mini to TTL FTDI Board Module FT232RL Switchable 3.3V/5V

The USB mini to TTL FTDI Board Module FT232RL Switchable 3.3V/5V is a UART (universal asynchronous receiver-transmitter) board used for TTL serial communication. It is a breakout board for the FTDI FT232R chip with a USB interface, can use 3.3 or 5 V DC and has Tx/Rx and other breakout points.

Features:
  • This FTDI board is based on FTDI original chip FT232RL.
  •  FT232R chips are one of the newer chips manufactured by FTDI (Future Technology Devices International).
  • Apart from being a USB to serial UART, it has an integrated EEPROM and optional clock generator output.
  • The chip also incorporates FTDI Chip-ID functionality (giving each chip a unique identifier for security) and USB termination resistors.
  • Cloned boards (with a cloned chip) will likely exclude the unique ID functionality and does not include an EEPROM, meaning that signals cannot be inverted.
  • Pins: 6 pin headers and 18 through-hole connectors. DTR, RX, TX, VCC, CTS, GND and PWR, TEN, SLEEP, CTS, 3.3V, 5V, RXL, TXL, GND x 2, TXD, DTR, RTS, VCC, RXD, R1, RSD, DCD (all marked)
  • The internal clock (6MHz, 12MHz, 24MHz and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic.
  • The module has a mini-B USB port which is used to connect to an USB port of an interfaced device (e.g. a PC).
  • On the other side, the FTDI USB to TTL serial converter module has breakout pins (Tx, Rx, Vc and GND) that is connected to a microcontroller’s corresponding pins.
  • Communication takes place using TTL (transistor-transistor logic).
  • It has a 3.3/5V DC jumper and will supply 500mA through its Vc pin.
Pinout:

PinFunction
GNDGround
VCCPower output (3.3V or 5V, switchable)
TXDTransmit Data (UART TX)
RXDReceive Data (UART RX)
DTRData Terminal Ready (Used for auto-reset in Arduino Pro Mini)
CTSClear to Send
Specifications:
  • Type: FTDI Board Module
  • Chipset: FT232RL
  • USB Interface: mini-B USB port
  • Voltage Levels: 3.3V or 5V (switchable)
  • Power Output:  3.3V (50mA max) or 5V (500mA max)
  • Baud Rate: 300bps to 3Mbps
  • Communication Protocol: UART (TX, RX), with CTS, RTS, DTR, DSR, RI support
  • EEPROM: Internal, configurable via FTDI software
  • Driver Support: Windows, macOS, Linux (VCP & D2XX drivers)
  • Connector Type: Standard 6-pin header (TX, RX, VCC, GND, CTS, DTR)
  • Material: PCB + Electronic Component
  • Board Module Color: Red
  • Pitch:2.54mm
  • Module Size(L X W): 36mm X 19mm
  • Operating Temperature: -40°C to +85°C
Applications:
  • Microcontroller Programming & Debugging.
  • Serial Communication with Embedded Systems.
  • DIY Electronics & Robotics Projects.
  • Bootloading & Firmware Updates.
  • RS232/TTL Serial Communication Bridge.
  • CNC Machines & 3D Printers.
  • IoT & Home Automation.
  • Reverse Engineering & Hacking.
Package Contents:

1 X USB Mini to TTL FTDI Board Module FT232RL Switchable 3.3V/5V
