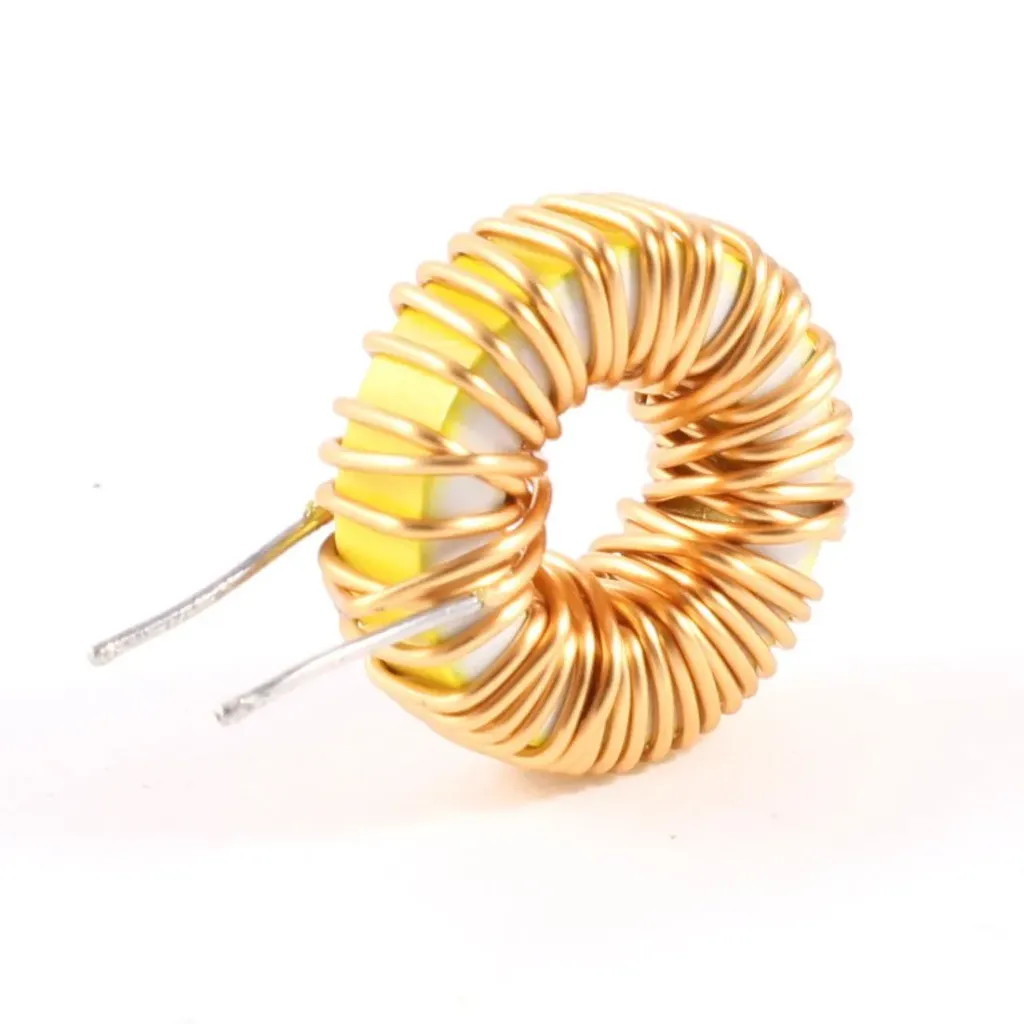

Toroid Inductor 5026-100uH 3A 0.5mm
The Toroid Inductor 5026-100uH 3A 0.5mm is a high-performance inductor designed for efficient energy storage and filtering in electronic circuits. Featuring a toroidal (ring-shaped) ferrite core, it minimizes electromagnetic interference (EMI) and maximizes magnetic efficiency. With an inductance of 100μH and a current rating of 3A, this inductor is ideal for applications requiring stable performance under high current loads. Its compact size and durable construction make it a reliable choice for both professional and DIY electronics projects.
Features
- Toroidal Core Design: Reduces EMI and improves efficiency by confining the magnetic field within the core.
- High Current Handling: Rated for up to 3A, making it suitable for power-intensive applications.
- Compact Size: Part of the 5026 series, offering a space-saving solution for PCB mounting.
- High-Quality Copper Wire: Utilizes 0.5mm diameter enameled copper wire for low resistance and excellent conductivity.
- Stable Performance: Provides consistent inductance across a wide range of frequencies and temperatures.
- Durable Construction: Built to withstand harsh conditions, ensuring long-term reliability.
Specifications
| Parameter | Value |
|---|---|
| Inductance | 100μH ±10% |
| Current Rating | 3A |
| Wire Diameter | 0.5mm |
| Core Material | Ferrite |
| Operating Temperature | -40°C to +125°C |
| Dimensions | Outer diameter: 15mm, Height: 7.5mm |
| Mounting Type | Through-hole (DIP) |
Applications
- Switch-Mode Power Supplies (SMPS): Used for energy storage and filtering in DC-DC converters and voltage regulators.
- EMI Filters: Helps suppress electromagnetic interference in sensitive circuits.
- Audio Equipment: Provides stable inductance for audio signal processing and amplification.
- Automotive Electronics: Suitable for power management in vehicle systems.
- Industrial Control Systems: Ensures reliable performance in automation and control applications.
