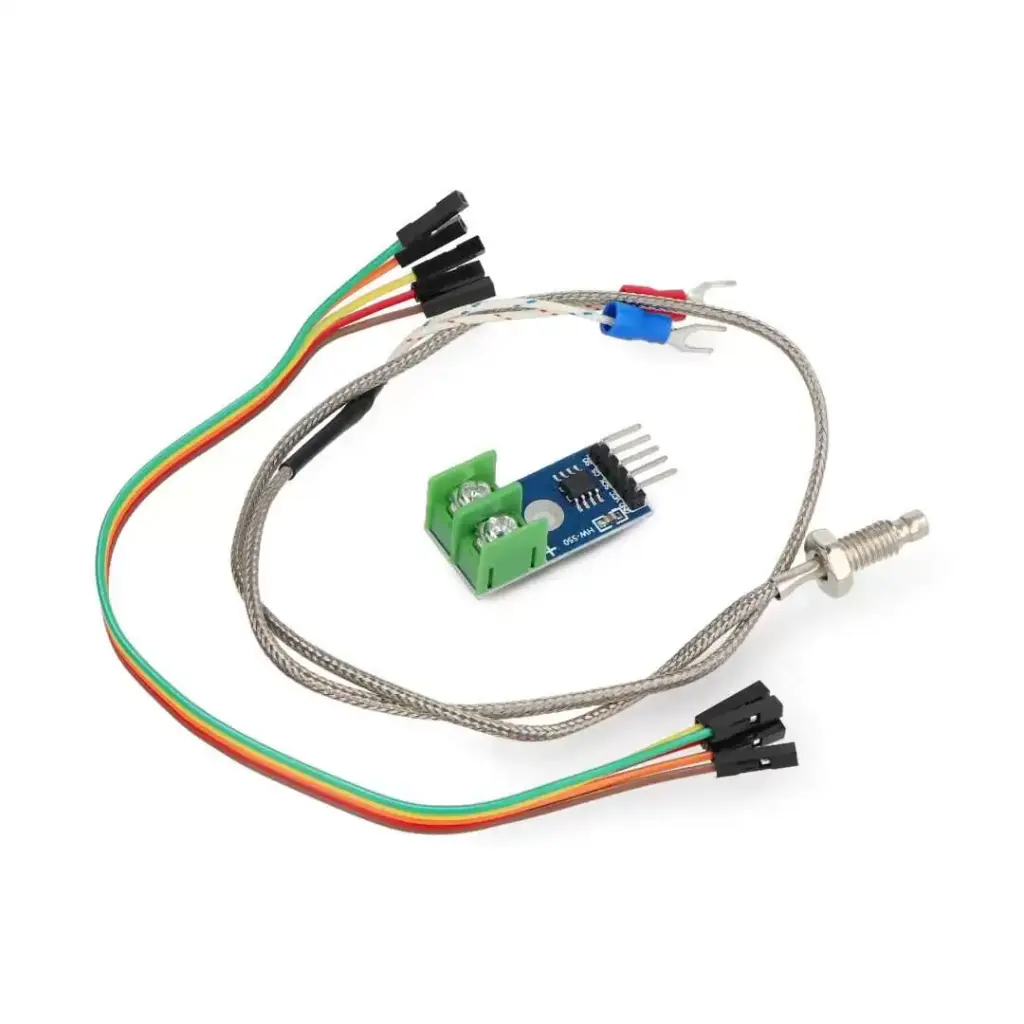

MAX6675 Thermocouple Temperature Module with K-Type Sensor
The MAX6675 Thermocouple Temperature Module is a reliable solution for high-temperature measurements in various applications. Utilizing the MAX6675 digital converter, it provides accurate readings from 0°C to 1024°C with a resolution of 0.25°C. The included K-Type thermocouple sensor ensures compatibility and ease of integration with microcontrollers like Arduino and Raspberry Pi through the SPI interface. This module is ideal for industrial processes, scientific experiments, and DIY projects requiring precise temperature monitoring.
Features:
- Measures temperatures from 0°C to 1024°C
- Resolution of 0.25°C for precise readings
- 12-bit ADC for accurate digital output
- Cold-junction compensation for improved accuracy
- SPI interface for easy integration with microcontrollers
- Compatible with Arduino, Raspberry Pi, and other platforms
- Includes K-Type thermocouple sensor with metal over-braiding
- Compact design for space-constrained applications
Specifications:
| Parameter | Specification |
|---|---|
| Model | MAX6675 Module with K-Type Thermocouple |
| Temperature Range | 0°C to 1024°C |
| Resolution | 0.25°C |
| Accuracy | ±1.5°C |
| ADC Resolution | 12-bit |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | 3.0V to 5.5V |
| Operating Current | 50mA |
| Module Dimensions | 25mm x 15mm x 13mm |
| Sensor Type | K-Type Thermocouple |
| Sensor Cable Length | Approximately 50cm |
| Sensor Probe Material | Metal over-braided |
| Mounting Holes | Yes (for easy installation) |
PINOUT:
| PIN | Description |
|---|---|
| GND | The ground of the system |
| VCC | Supply voltage from 3 V to 5.5 V |
| SCK | Serial Clock Input |
| CS | Chip Select |
| SO | Serial Output |
Applications:
- Industrial temperature monitoring and control
- Scientific research and laboratory experiments
- HVAC systems and thermal management
- Kiln and furnace temperature measurement
- 3D printer and heated bed temperature sensing
- Food processing and safety monitoring
- DIY electronics and maker projects
Package Includes:
- 1 x MAX6675 Thermocouple Temperature Module
- 1 x K Type Thermocouple Sensor
- 1 x 5-pin F-F Jumper Cable
