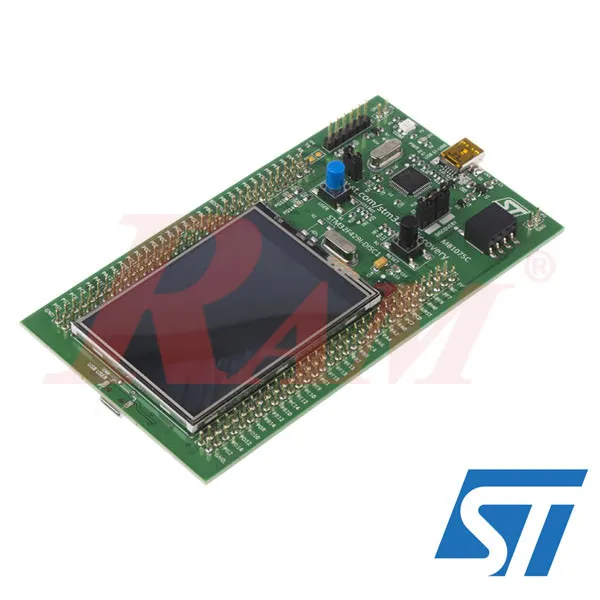

The STM32F429I-DISC1 is a versatile evaluation board featuring the ARM Cortex®-M4 32-bit microcontroller, designed for embedded applications. It offers a rich set of peripherals, including advanced graphics capabilities, high-speed connectivity options, and extensive memory support. Ideal for developers and engineers, this board provides a robust platform for prototyping and testing innovative applications, enabling efficient development and rapid deployment of embedded systems. With its user-friendly design and comprehensive development tools, the STM32F429I-DISC1 is perfect for exploring the capabilities of the STM32F4 series microcontrollers.
General Overview
- Product Name: STM32F429I-DISC1
- Type: Evaluation Board
- Microcontroller: STM32F429ZI
- Architecture: ARM Cortex®-M4
- Bit Width: 32-bit
Key Features
Core:
- ARM Cortex-M4 core with FPU (Floating Point Unit)
- Maximum clock frequency: 180 MHz
- 1 MB Flash memory
- 256 KB SRAM
Connectivity:
- USB OTG FS
- Ethernet MAC
- SDIO interface
- I2C, SPI, USART interfaces
- CAN interface
Display:
- 2.4" TFT LCD with touch screen
- 16-bit color depth
Audio:
- Audio DAC with headphone output
- Microphone input
Expansion:
- Arduino™ Uno V3 compatible connectors
- ST morpho connectors for additional peripherals
Power Supply:
- Powered via USB or external power supply
- Voltage range: 5V
Peripherals
- Timers: 14 timers (including advanced-control timers)
- ADC: 3 ADCs with up to 12-bit resolution - 16 channels
- DAC: 2 DACs with 12-bit resolution
- GPIO: Up to 140 GPIOs
Development Support
- Development Environment: Compatible with various IDEs (e.g., STM32CubeIDE, Keil, IAR) - STM32Cube software development platform
- **Debugging:**
- ST-LINK/V2-1 debugger/programmer integrated
Dimensions
- Board Size: 100 mm x 80 mm
Operating Conditions
- Temperature Range:** -40°C to +85°C (depending on the application)
Additional Features
- On-board ST-LINK/V2-1 for programming and debugging
- User LEDs and push-buttons for easy interaction
- Comprehensive documentation and example projects available
Applications
- Industrial control
- Consumer electronics
- Medical devices
- IoT applications
- Robotics
