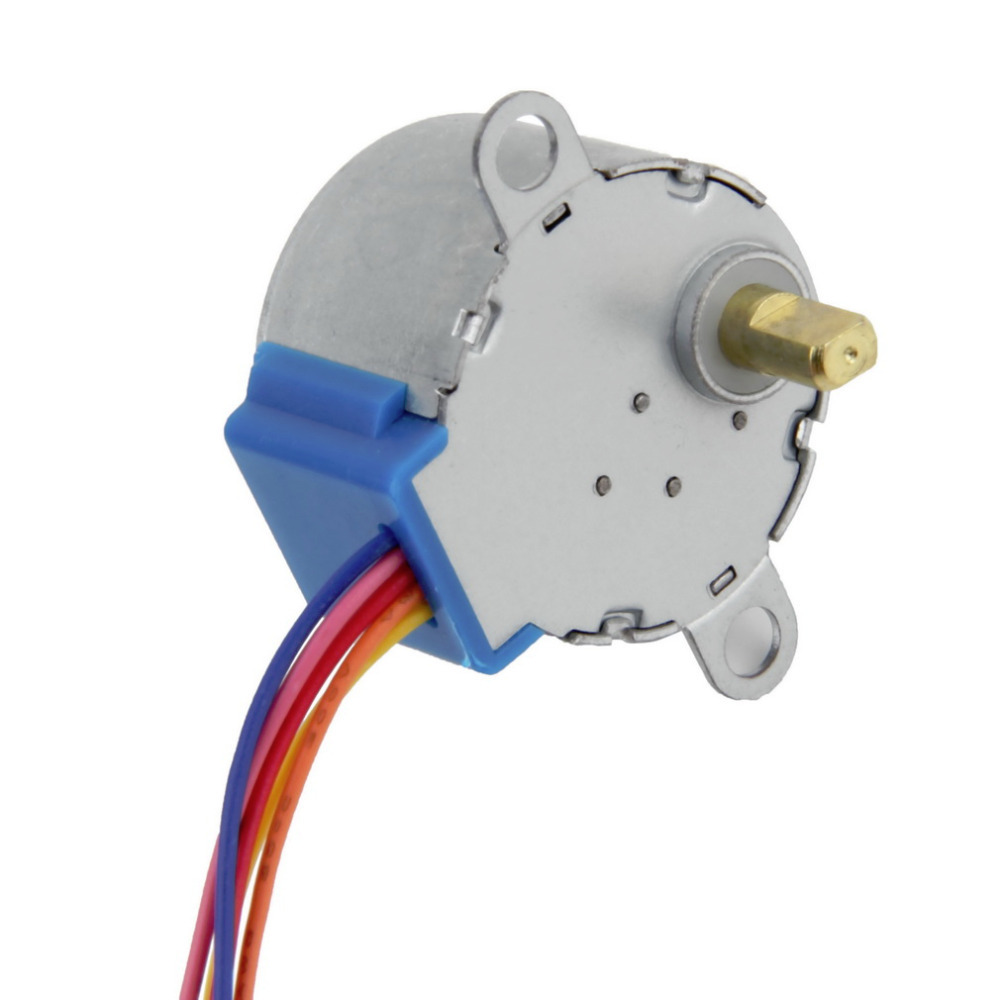

Five-wire stepper motor. It has an integrated 64:1 gearbox. It is powered by 5 V and draws 100 mA per coil. The holding torque on the gearbox is 0.3 kg.cm (0.03 Nm).

Product Description: Stepper motor with gear 28BYJ-48 5 V / 0.1 A / 0.03 Nm

Five-wire stepper motor .It has an integrated 64:1 gearbox. It is powered by 5 V and draws 100 mA per coil. The holding torque after the gearbox is0.3 kg.cm (0.03 Nm).There is a 5 mm diameter shaft on the output.

Use of stepper motors:

• Printers
• CNC equipment
• 3D printers
• Lasers
• Manipulators

Engine specification – Step-motor 28BYJ-48

• Rated voltage: 5 V
• Current draw per coil: 100 mA
• The gearing: 64:1
• Coil resistance: 50 Ω
• Gear output holding torque: 0.3 kg.cm (0.03 Nm).
• Leads: five wires
• Shaft diameter: 5 mm with cut-outs
• Weight: 35 g
• Distance between mounting holes: 35 mm
• Dimensions: ϕ28 x 19 mm (without shaft)

For details, see The Engine Documentation.
