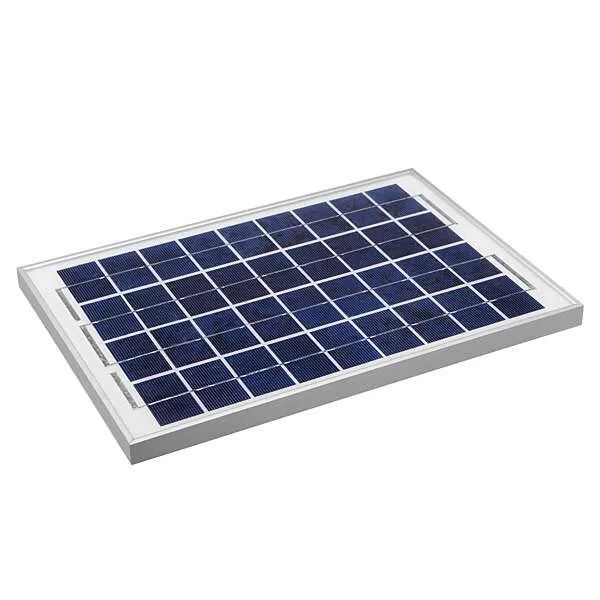

Solar Panel 18V 100W 1200x550x30mm
The Solar Panel 18V 100W 1200x550x30mm, measuring 1200mm in length, 550mm in width, and 30mm in thickness, is a high-efficiency energy solution designed for a wide range of off-grid applications. It ensures excellent performance even in low-light conditions. The robust tempered glass covering and corrosion-resistant aluminum frame offer long-term weather resistance, making it ideal for both outdoor and mobile installations, such as RVs, boats, cabins, and remote communication systems.
Lightweight yet strong, the panel features pre-drilled mounting holes for easy installation and compatibility with various solar system components. Engineered for reliability and efficiency, this 100W panel provides a consistent and sustainable energy output, helping users harness the sun’s power effectively wherever it’s needed.
Features:
- High Efficiency where Utilizes premium solar cells for higher energy conversion even under low-light conditions.
- Durable Construction where Built with tough tempered glass and a corrosion-resistant aluminum frame for long-term outdoor use.
- Weather Resistant where Designed to withstand heavy rain, strong winds, and snow loads.
- Lightweight and Portable where Compact dimensions make it easy to transport and install.
- Pre-drilled Mounting Holes where Simplifies installation and is compatible with a variety of mounting systems.
- Low Maintenance where Designed for longevity with minimal upkeep required.
- Wide Compatibility where Suitable for 12V and 24V battery charging systems when paired with the correct charge controller.
- Applications where Ideal for RVs, boats, cabins, backup power systems, and off-grid installations.
Specifications:
| Specification | Value |
|---|---|
| Maximum Power Voltage (Vmp): | 18V |
| Maximum Power (Pmax): | 100W |
| Maximum Power Current (Imp): | 5.32A |
| Open Circuit Voltage (Voc): | 22.94V |
| Short Circuit Current (Isc): | 5.56A |
| Maximum Series Fuse: | 10A |
| Max System Voltage: | 1000V |
| Dimensions (L × W × Thickness): | 1200mm × 550mm × 30mm |
| Operating Temperature Range: | -40°C to +85°C |
| Frame Material: | Anodized Aluminum Alloy |
| Glass: | Low-Iron Tempered Glass |
Applications:
- RVs and Camper Vans.
- Boats and Marine Use.
- Off-Grid Cabins and Tiny Homes.
- Camping and Outdoor Expeditions.
- Backup Power Systems.
- Remote Monitoring Stations.
- Electric Fencing.
- Portable Solar Generator Kits.
- Street Lighting and Garden Lights.
- Small-Scale Commercial Use.
Package Contents:
- 1x Solar Panel 18V 100W 1200x550x30mm
