Solar Charger Controller 10A

Solar Charger Controller 10A

(0 review)
Compact 10A solar charge controller with LCD display, dual USB ports, and auto 12V/24V detection—ideal for off-grid solar and battery protection.

Add to cart
Buy now
Add to wishlist
Price
450.00 LE 450.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

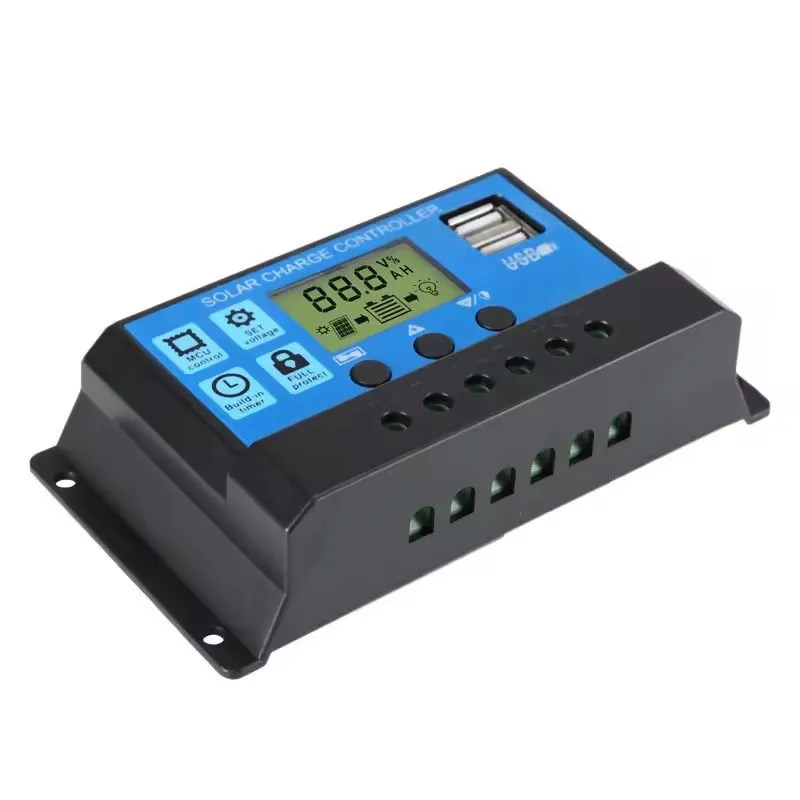

W88-A Solar Charger Controller 10A

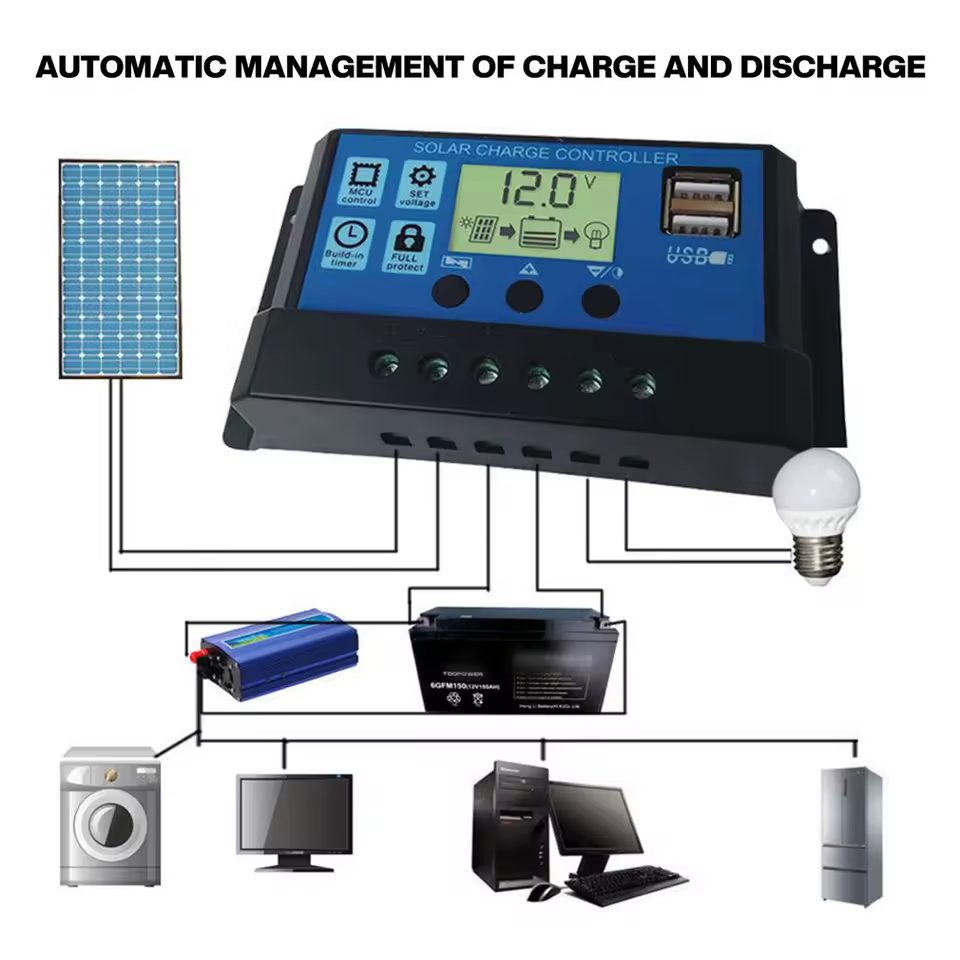

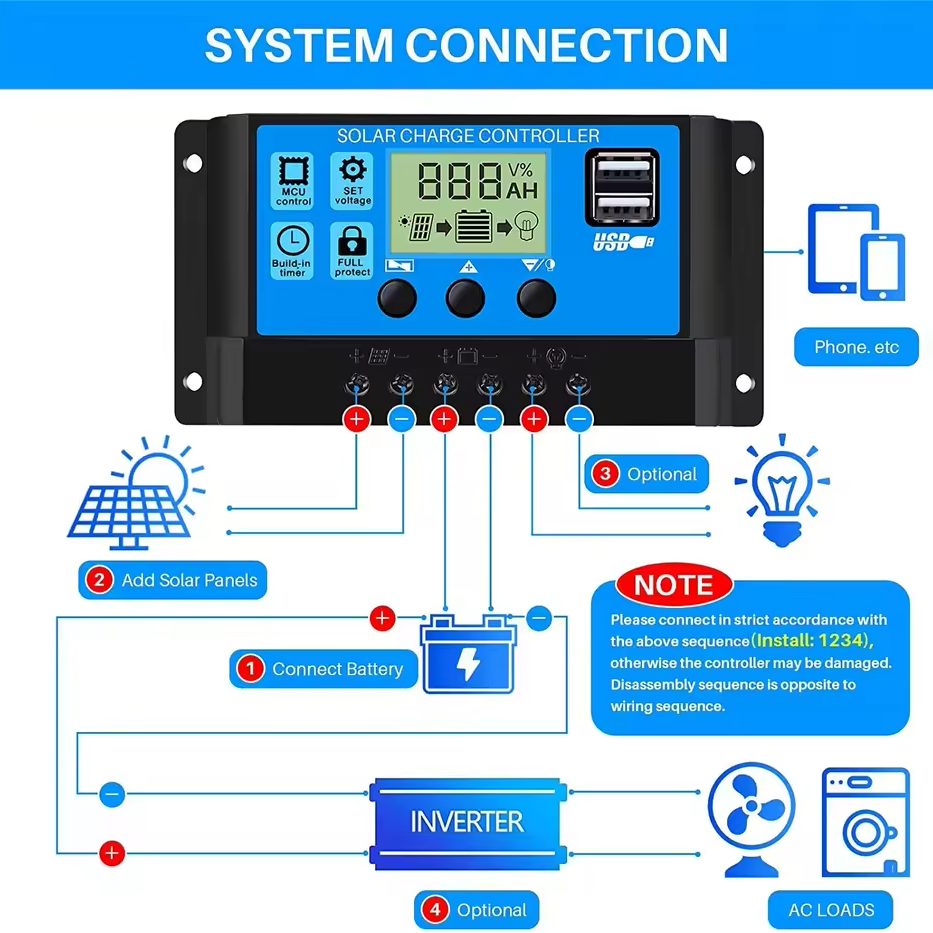

The W88-A Solar Charger Controller 10A is a compact and efficient device designed to manage the power flow between a solar panel, battery, and load. It ensures safe and reliable charging by preventing overcharging, over-discharging, and short circuits.

With a user-friendly interface and LED indicators, it provides real-time status updates for system monitoring. Ideal for small to medium off-grid solar systems, this controller supports both 12V and 24V automatic system recognition, making it a versatile choice for solar-powered applications.

Features:

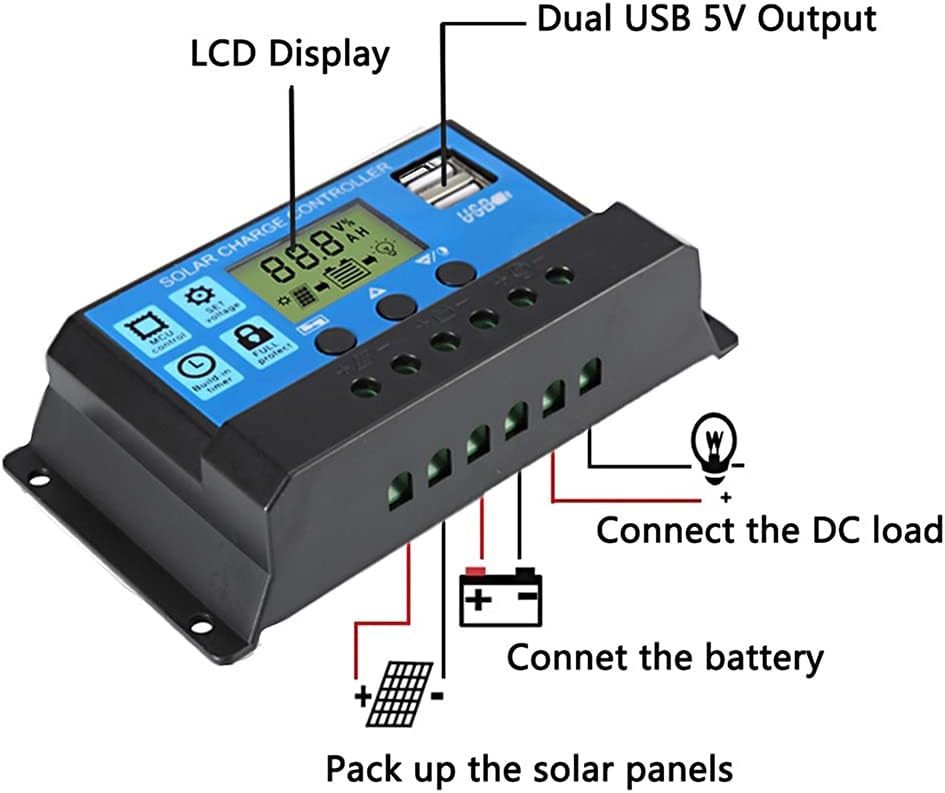

  • Dual USB Ports Charge mobile devices directly from the controller.
  • Automatic Voltage Detection Supports both 12V and 24V systems.
  • LCD Display Provides real-time monitoring of system status and parameters.
  • PWM Charging Mode Ensures efficient and safe battery charging.
  • Comprehensive Protection Includes safeguards against overcharging, over-discharging, short circuits, and reverse polarity.
  • User-Friendly Interface Simple button controls for easy operation and settings adjustment.

Specifications:
  • Model: W88-A
  • Rated Voltage: 12V/24V (auto-detect)
  • Charge Current: 10A
  • Discharge Current: 10A
  • Maximum PV Voltage: 50V
  • Self – Consume: < 10mA
  • Maximum PV Input Power: 130W (12V system) / 260W (24V system)
  • Equalization: B1 sealed 14.4V
  • Float Charge: 14.4V
  • Discharge Stop: 10.7V
  • Discharge Reconnect: 12.6V
  • Charge Reconnect: 13.2V
  • Voltage of Open Light: Solar Panel 8V (Light Lights Delay)
  • Voltage of Close Light: Solar Panel 8V (Light Off Delay)
  • USB Output: 2 Way USB Output 5V/2.5A (Max)
  • Display: LCD screen
  • Operating Temperature: -35°C to +60°C
  • Dimensions: 133.5mm x 70mm x 35mm
  • Weight: 165g
  • Battery Compatibility: Suitable for lead-acid batteries (OPEN, AGM, GEL)

Applications:
  • Off-Grid Solar Systems.
  • Solar Lighting Systems.
  • RV and Camper Vans.
  • Solar Power Banks.
  • Telecommunication Stations.
  • Agricultural and Rural Applications.
  • Emergency Backup Systems.
