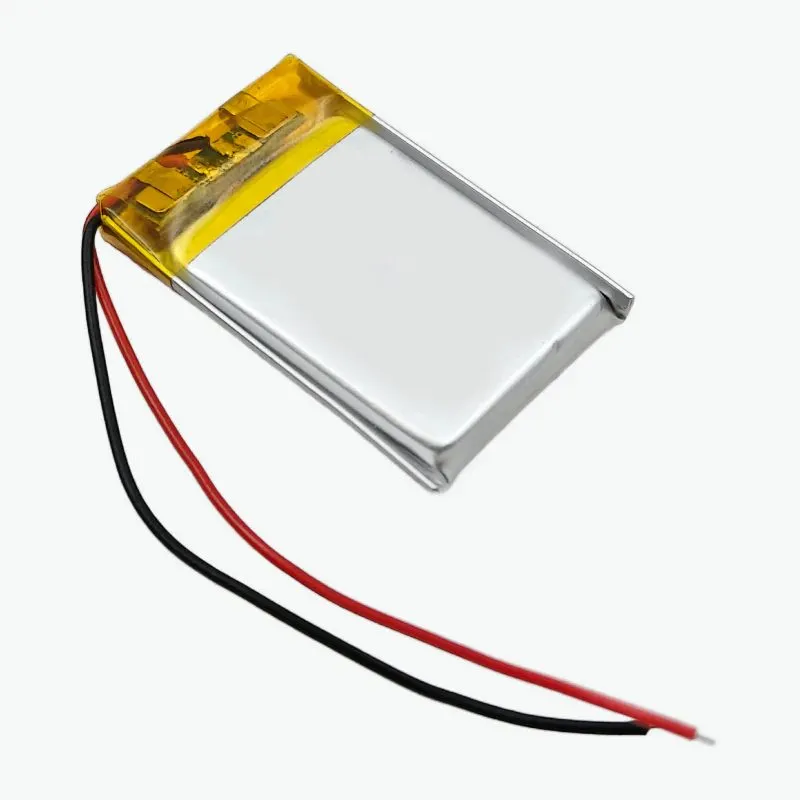

Rechargeable 601520 LIPO Battery Cell 3.7V 150mAh Wire Solder
The Rechargeable 601520 LIPO Battery Cell 3.7V 150mAh Wire Solder is a compact and lightweight rechargeable power source designed for small electronic devices requiring reliable energy storage. With a nominal voltage of 3.7V and a capacity of 150mAh, it delivers stable performance in applications such as wearable electronics, Bluetooth devices, portable sensors, mini drones, and other low-power gadgets. Its slim 6mm x 15mm x 20mm profile makes it easy to integrate into space-constrained designs, while the pre-attached wire leads allow for convenient soldering and secure connection. Built with advanced lithium polymer technology, this battery offers high energy density, long cycle life, and low self-discharge, ensuring consistent power delivery. Safety features such as overcharge, over-discharge, and short-circuit protection can be incorporated with the use of an external PCM (protection circuit module). Whether for DIY projects, product prototyping, or consumer electronics, this rechargeable LiPo cell provides a durable, efficient, and cost-effective energy solution.
Features
- Compact Design Slim 402030 size (6mm x 15mm x 20mm) fits in tight electronic enclosures.
- Stable Voltage Provides a consistent 3.7V output for reliable device performance.
- Decent Capacity 150mAh capacity supports moderate energy needs in small devices.
- Pre-attached Wires Equipped with wire leads for easy soldering and integration.
- Rechargeable Supports hundreds of charge/discharge cycles for long-term use.
- High Energy Density Delivers more power in a small, lightweight form factor.
- Safe Operation Designed for safety when paired with proper protection circuitry.
Specifications
| Parameter | Specification |
| Battery Type | LiPo |
| Model | 601520 |
| Chemistry | Lithium Polymer |
| Recharging Availability | Rechargeable |
| Nominal Voltage | 3.7V |
| Rated Capacity | 150mAh |
| Full Charge Voltage | 4.2V |
| Cut-off Voltage | 3.0V |
| Dimensions | Thickness: 6mm, Width: 15mm, Length: 20mm |
| Connector Type | Wire leads for soldering |
| Typical Discharge Current | 0.2C (30mA) |
| Maximum Discharge Current | 1C (150mA) |
| Standard Charging Current | 0.2C (30mA) |
| Cycle Life | ≥ 300 cycles (standard conditions) |
| Internal Resistance | 150 mΩ (at full charge) |
| Operating Temperature – Charging | 0°C to +45°C |
| Operating Temperature – Discharging | -10°C to +60°C |
| Storage Temperature | -20°C to +60°C |

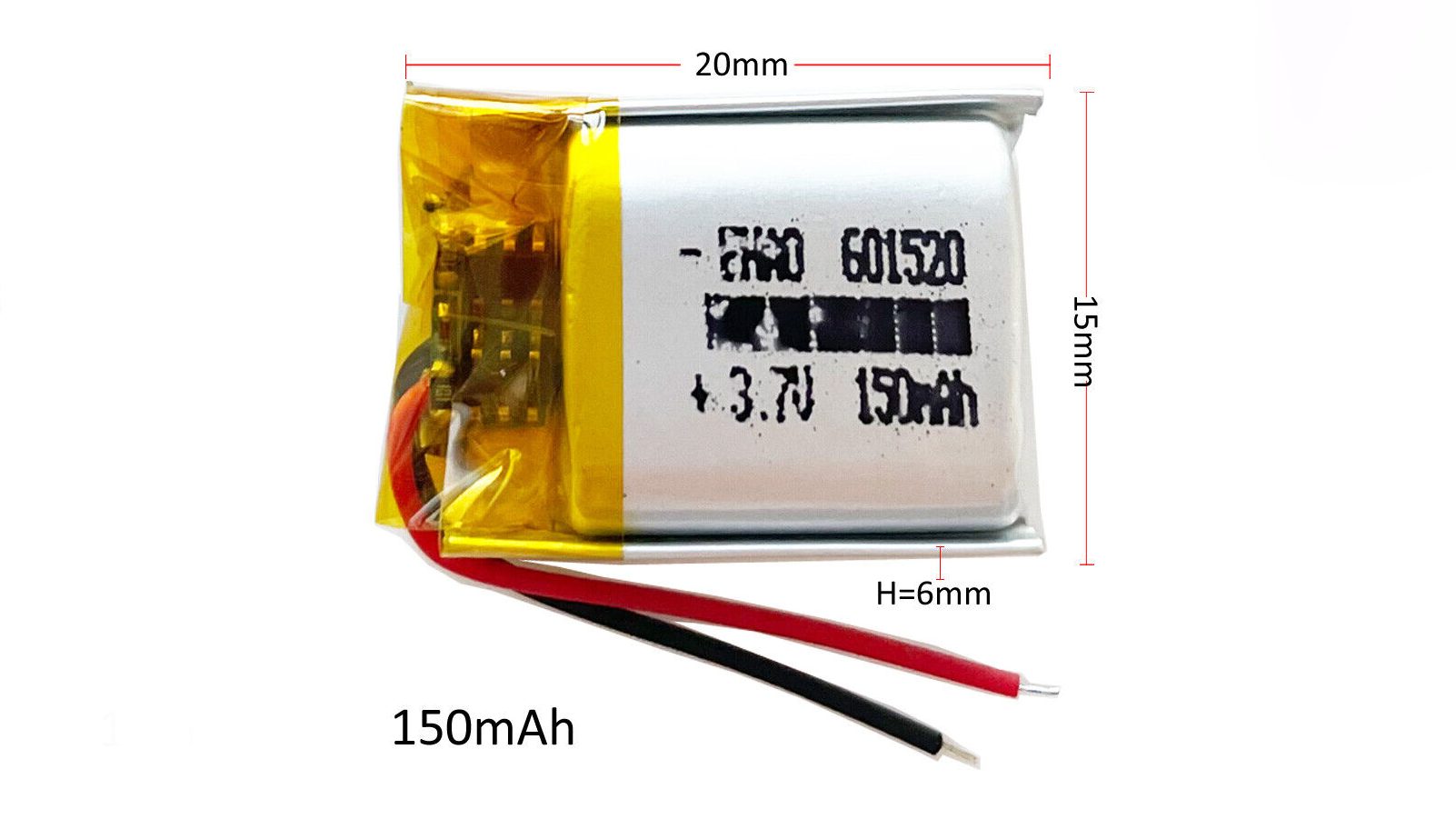

Dimensions
Precautions
- Never expose Batteries to extreme temperatures or direct sunlight.
- Do not store Li-Po batteries in extreme temperatures below 0°C or above 50°C.
- Always disconnect Batteries when not in use and store batteries in a non-conductive and fireproof container.
- Never charge a battery that is still warm after usage, and never use a battery that is still warm from charging.
- Actual safe discharge current depends on protection circuitry and thermal conditions. Exceeding rated values may reduce battery life or cause damage.
Applications
- Electronics Gadgets.
- IoT Applications.
- Portable devices.
- Wireless devices.
- Electronic Toys.
