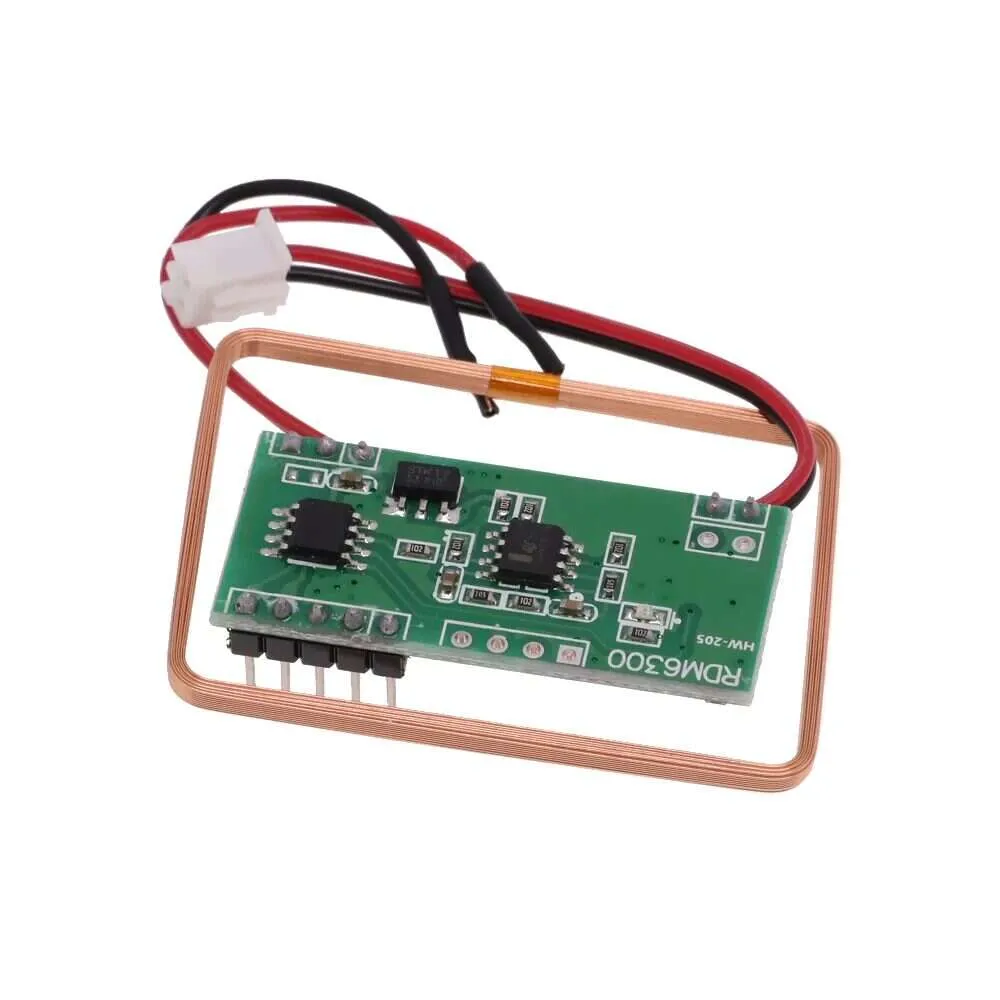

RDM6300 RFID Reader Module
The RDM6300 is a 125KHz RFID reader module designed to read codes from compatible read-only tags and read/write cards. This compact and cost-effective module communicates via a serial TTL interface at a 9600 baud rate, making it easy to interface with microcontrollers such as Arduino.
It is widely used in applications requiring secure and efficient identification, such as access control, security systems, and personal identification. The module’s small footprint and low power consumption make it an excellent choice for both hobbyist projects and professional applications.
Features
- Operating Frequency: 125KHz, suitable for low-frequency RFID applications.
- Tag Compatibility: Reads EM4100 and other compatible tags, ensuring broad usability.
- Serial Interface: TTL level RS232 format with a 9600 baud rate for simple microcontroller integration.
- Detection Range: Up to 5 cm (20–50 mm), ideal for close-proximity reading.
- Low Power Consumption: Operates at less than 50mA at 5V, energy-efficient for battery-powered systems.
- External Antenna: Includes a loop antenna for flexible placement and enhanced performance.
- Microcontroller Compatibility: Easily integrates with Arduino, ESP8266, ESP32, and other platforms.
Specifications :
| Parameter | Value |
|---|---|
| Operating Frequency | 125 kHz |
| Baud Rate | 9600 |
| Interface | TTL level RS232 format |
| Working Voltage | 5V DC (±5%) |
| Working Current | <50mA |
| Detection Range | 20–50 mm (2–5 cm) |
| Operating Temperature | -10°C to +70°C |
Pin Description :
