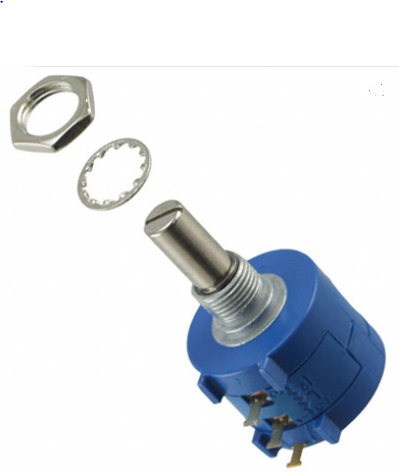

Precision Potentiometer 3590S-2-103L – 10KΩ 10 Turn

The Bourns 3590S-2-103L Precision Potentiometer is a high-quality component designed to provide precise resistance adjustments in electronic circuits. With a 10K Ohm resistance value and a 10-turn adjustment mechanism, this potentiometer allows for fine control over voltage or current settings. It is ideal for use in applications where precision and accuracy are crucial.

Constructed with wirewound technology, this potentiometer ensures stability and durability over time. The robust build includes a bushing-mount design, available with either plastic or metal bushings, allowing for versatile installation options. The unit features a 10-turn potentiometer, which provides a high level of resolution in adjustments. It’s built to withstand harsh conditions with its IP65 rating in sealed versions.

The 3590S-2-103L is engineered to perform effectively in both high and low-temperature environments, with an operational range between -40°C and +125°C. This makes it highly suitable for use in demanding industrial, automotive, and electronic applications, ensuring reliability in all environments. The potentiometer also offers long-lasting performance, with up to 1,000,000 shaft revolutions, making it ideal for high-precision calibration tasks.

Features:

• 10-turn adjustment for fine control.
• Wirewound resistive element for precision.
• Sealed or unsealed versions available with IP65 rating for durability.
• Mounting options: bushing-mount with plastic or metal shaft.
• Temperature resilience from -40°C to +125°C.

Specifications:

Applications:

• Audio and Signal Processing.
• Test and Measurement Equipment.
• Industrial Automation.
• Calibration Devices.
• Medical Equipment.
