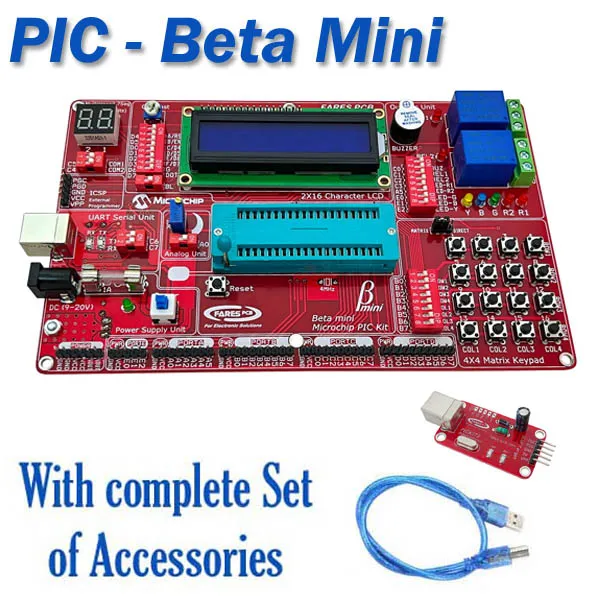

Betamini is a PIC development kit designed particularly for students, beginners, and freshly graduated engineers to provide easy development of PIC microcontroller projects.
Features
- The kit can be powered by any of:
- DC adaptor (1A) via DC power socket 9-20V.
- PC via USB type B socket.
- External programmer via ICSP socket.
- ZIF socket supports a wide range of PIC microcontrollers (16F and 18F families ).
- 4X4 matrix keypad.
- Outputs unit includes LEDs, relays, and buzzer.
- Multiplexed two digits 7segments display.
- 2X16 LCD display module.
- One variable analog input using a highly precise multi-turn variable resistor.
- Virtual serial COM port via USB (CH340).
- Standard 5 pin header socket ICSP for external programmers.
- All microcontroller I/O pins are brought out via pin header.
Package Includes:
- Betamini Board
- PICKIT2 programmer + Cable
- USB cable A male/B female type
NOTE: The Kit doesn't include the Microcontroller Chip.
Download
- User Manual & Software CD (Click Here)
