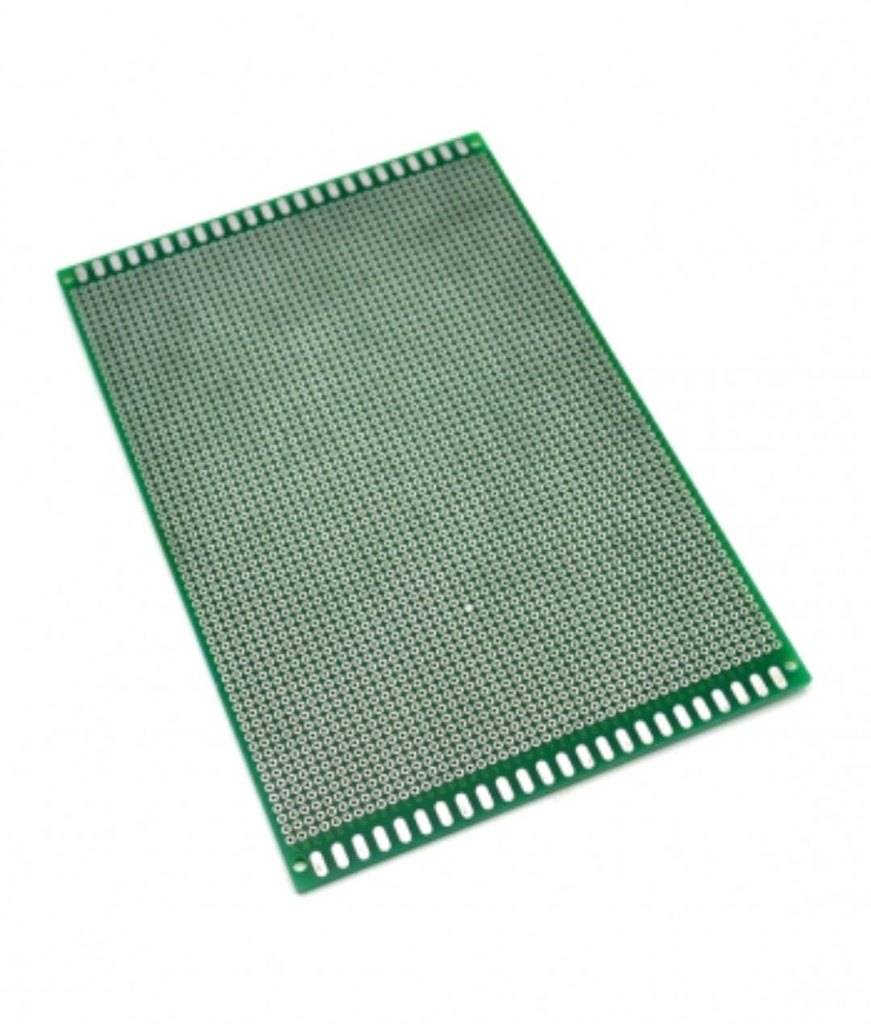

PCB Prototype Board – Vero Board FR-4 Double Layer
This double-layer (double-sided) FR-4 prototype vero board features copper layers on both sides, allowing more flexible routing and higher circuit density compared to single-layer boards. It is ideal for advanced prototyping where jumpers, ground planes, or power distribution are required on separate layers.
Made from FR-4 fiberglass material, the board offers excellent mechanical strength, thermal stability, and electrical insulation. Available in multiple sizes ranging from 2×8 cm up to 9×15 cm, it supports standard 2.54 mm pitch through-hole components and can be drilled or cut to suit custom project requirements.
Features:
- Double-layer (double-sided) copper design.
- Strong and durable FR-4 fiberglass material.
- Supports more complex circuit layouts.
- Suitable for through-hole components.
- Easy to solder and modify.
- Can be cut to custom sizes.
Specifications:
| Parameter | Value |
|---|---|
| Board Type | Vero / Prototype Board |
| Layers | Double layer (double-sided) |
| Material | FR-4 (Fiberglass) |
| Copper Layout | Pads on both sides |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Mounting Type | Through-hole |
| Available Sizes | 2×8, 3×7, 4×6, 5×7, 6×8, 7×9, 8×12 9×15 cm |
Applications:
- Advanced electronic circuit prototyping.
- Power supply and control circuits.
- Arduino and development board projects.
- Educational and professional electronics labs.
- DIY and small production builds.
Packages:
- 1x PCB Prototype Board – Vero Board FR-4 Double Layer.
Alternative Products
These other products might interest you
Specifications
| size (cm) | 9*15, 7*9 |
