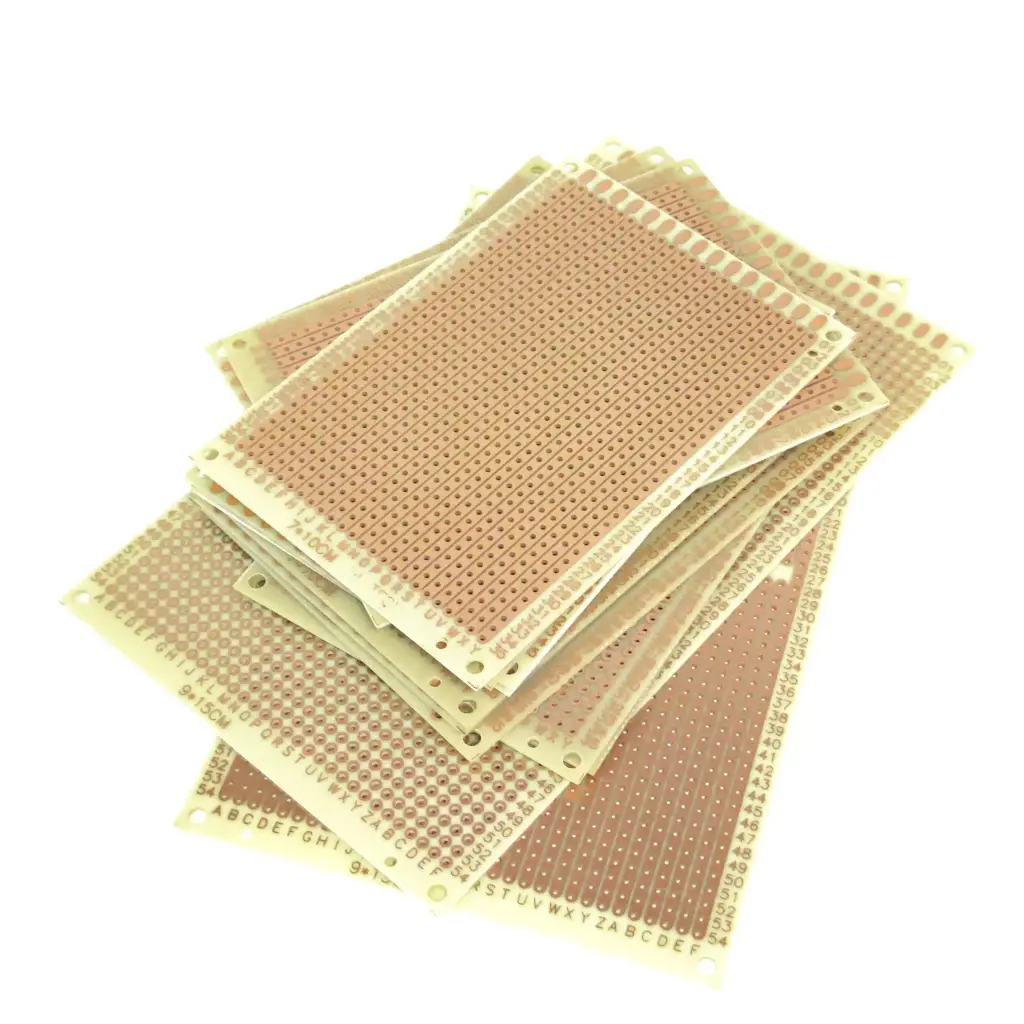

PCB Prototype Board – Vero Board FR-2 Dotted

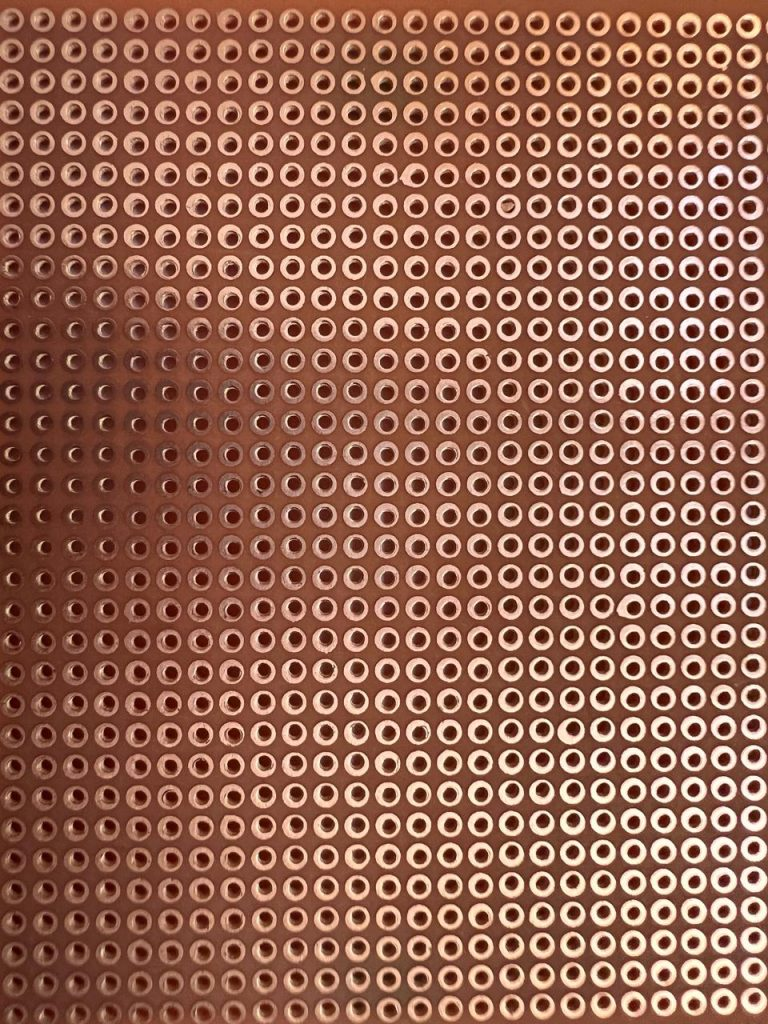

This PCB prototype vero board is made from FR-2 phenolic material and features a dotted copper pad layout, allowing easy point-to-point soldering of through-hole components. It is ideal for quick circuit prototyping, testing designs, and educational projects where flexibility and speed are more important than mass production.
Available in 7×9 cm and 9×14.5 cm sizes, the board can be cut to fit smaller designs and supports common DIP ICs, resistors, capacitors, and connectors. The dotted (island) pad pattern provides better control over routing compared to strip boards, reducing the risk of unwanted shorts.
Features:
- Dotted copper pad layout.
- Easy soldering for through-hole components.
- Can be cut to custom sizes.
- Suitable for fast prototyping.
- Cost-effective PCB solution.
- Compatible with common electronic components.
Specifications:
| Parameter | Value |
|---|---|
| Board Type: | Vero / Prototype Board |
| Material: | FR-2 (Phenolic) |
| Copper Layout: | Dotted pads |
| Thickness: | Standard prototype board thickness |
| Available Sizes: | 7×9 cm, 9×14.5 cm |
| Hole Pitch: | 2.54 mm (0.1 inch) |
| Mounting: | Through-hole |
Applications:
- Electronic circuit prototyping.
- Arduino and development projects.
- Educational labs and training.
- DIY electronics and testing.
- Small production or one-off builds.
