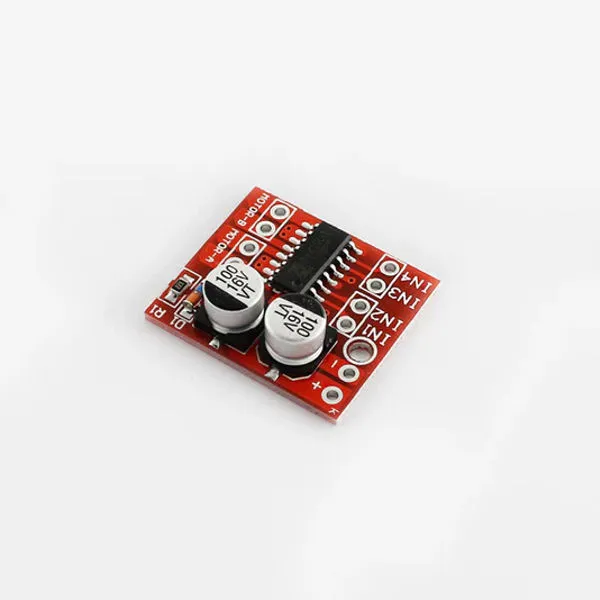

MX1508 Dual Channel DC Motor Driver Module
The MX1508 Dual Channel DC Motor Driver Module is a small two-channel controller built to drive low-voltage brushed DC motors in forward and reverse. The PDF shows it being used with an Arduino and explains that each channel uses an H-bridge so the two motors can run independently.
It is suitable for PWM speed control, which lets you adjust motor speed smoothly instead of only switching motors on and off. The document also notes that the board includes protection parts to help reduce reverse-EMF spikes, making it more reliable in projects with noisy motors.
Overall, the MX1508 module is presented as a practical choice for hobby electronics, Arduino projects, and other compact motor-control builds where two small motors need separate direction and speed control from a simple interface.
Features:
- Dual-channel motor control.
- Independent control of two motors.
- H-bridge drive for forward and reverse rotation.
- PWM speed control support.
- Protection components to help handle reverse-EMF spikes.
- Works with low-voltage brushed DC motors.
- Suitable for Arduino-based control setups.
Specifications:
| Parameter | Value |
|---|---|
| Product Name: | MX1508 Dual Channel DC Motor Driver Module |
| Driver Type: | Dual H-Bridge Motor Driver |
| Motor Channels: | 2 Channels |
| Input Voltage: | 2V – 10V DC |
| Control Signal Voltage: | 1.8V – 7V DC |
| Continuous Current (Per Channel): | 1.5A |
| Peak Current (Per Channel): | 2.5A |
| Control Method: | PWM Speed Control |
| Supported Load: | 2 DC Motors or 1 Stepper Motor |
| Dimensions: | 24.6 × 21 × 7 mm |
| Mounting Hole Diameter: | 2 mm |
Pin Configuration:
| S.N | Pin Type | Pin Function |
| 1 | + Voltage | Power Supply |
| 2 | – Ground | Ground |
| 3 | Motor A | Motor A connect pins |
| 4 | Motor B | Motor B connect pins |
| 5 | IN 1 | Control Signal input 1 (Motor A) |
| 6 | IN 2 | IN 2 Control Signal input 2 (Motor A) |
| 7 | IN 3 | Control Signal input 3 (Motor B) |
| 8 | IN 4 | Control Signal input 4 (Motor B) |
Connections of MX1508 DC Motor Driver with a Microcontroller:
Applications:
- Robotics and automation systems.
- Used to drive high current LED’s.
- Low-power embedded motor control.
- Battery-powered smart cars.
- Toy vehicles.
