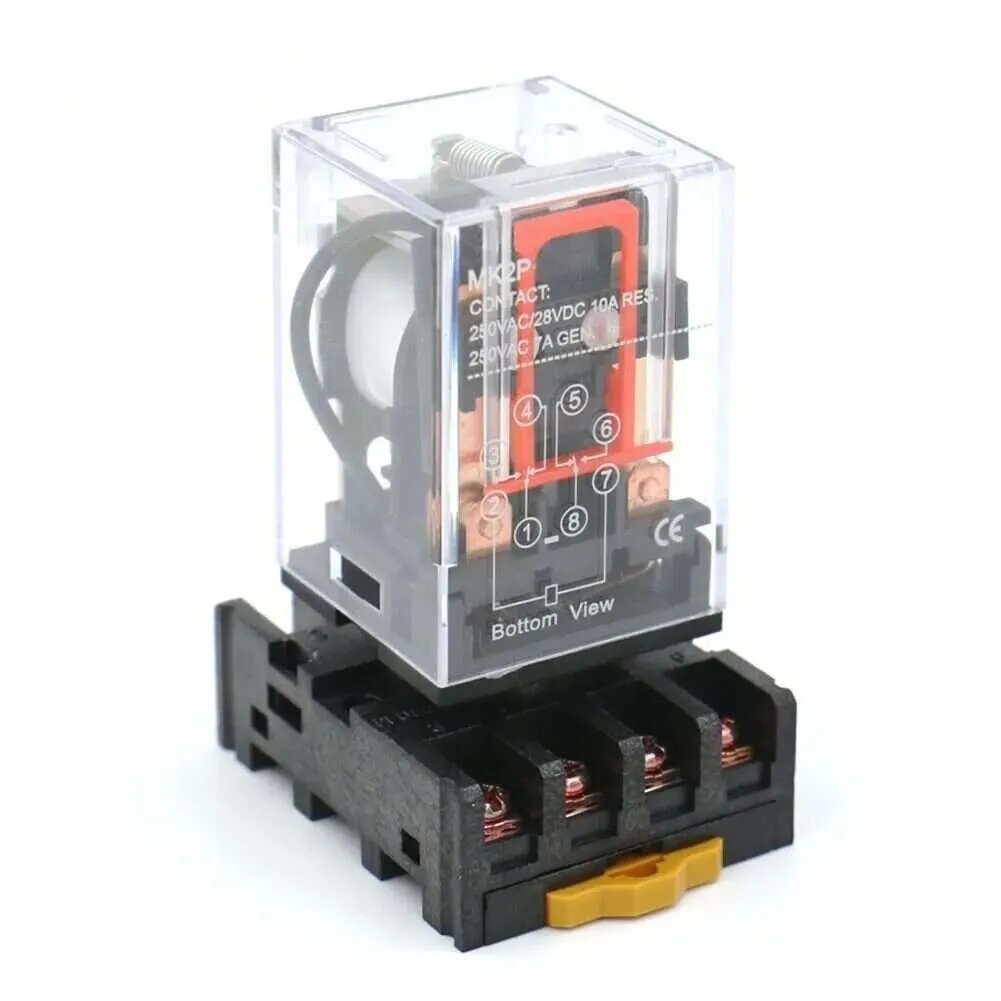

MK2PN Electromagnetic Relay DPDT 8pin with PF083A Socket
The MK2PN Electromagnetic Relay DPDT 8pin with PF083A Socket is a high-quality, general-purpose relay designed for a wide range of switching applications. Featuring a Double Pole Double Throw (DPDT) contact configuration, this relay can control two separate circuits simultaneously, making it ideal for complex control systems.
Features:
- Contact Configuration: DPDT (Double Pole Double Throw) with 8 pins, facilitating versatile switching operations.
- Coil Voltage Options: Available in various voltages, including 24VDC, 60VDC, 24VAC and 220VAC, accommodating different control systems.
- Socket Compatibility: The PF083A socket supports DIN rail or surface mounting with screw terminals, ensuring secure and flexible installation.
- Durable Construction: Designed to endure up to 10 million mechanical operations, ensuring long-term reliability.
Specifications:
| Basics: | Model: | MK2PN Relay with Socket) |
| Dimension (L*W*H): | 35×35×53mm | |
| Weight: | 76g | |
| Ambient Temperature: | -25℃~+55℃ | |
| Terminal Type: | Plug in | |
| Number of Pins: | 8 | |
| Technical Parameters: | Contact Form: | DPDT |
| Contact Material: | Silver alloy | |
| Contact Capacity (Resistive load): | 10A/250V AC 28V DC | |
| Coil Power: | DC≤2W, AC≤3.5VA | |
| Coil Voltage: | Optional: 24V DC, 60V DC, 220V AC | |
| Pick-up Voltage at 23℃: | DC≤75%, AC≤80% | |
| Drop-out Voltage at 23℃: | DC≥10%, AC≥30% | |
| Contact Resistance @6V DC 1A: | ≤100MΩ | |
| Dielectric Strength: | Between open contact: | ≥1200V AC 50Hz/1min |
| Between adjacent contact: | ≥1500V AC 50Hz/1min | |
| Between coil & contact: | ≥1500VAC 50Hz/1min | |
| Leakage current: | ≤1mA | |
| Insulation Resistance (MΩ): | ≥500MΩ at 500V DC | |
| Service life: | Electrical: | 105 Times (Frequency: On 1 Time/1s, Off 1 Time/1s) |
| Mechanical: | 106 Times (Frequency: 300 Time/1min) |
Dimensions & Connection Diagram:
Relay Socket Size:
Applications:
- Industrial automation systems
- Control panels for machinery and equipment
- Power supply units
- HVAC systems
- Motor control circuits
- Lighting control systems
