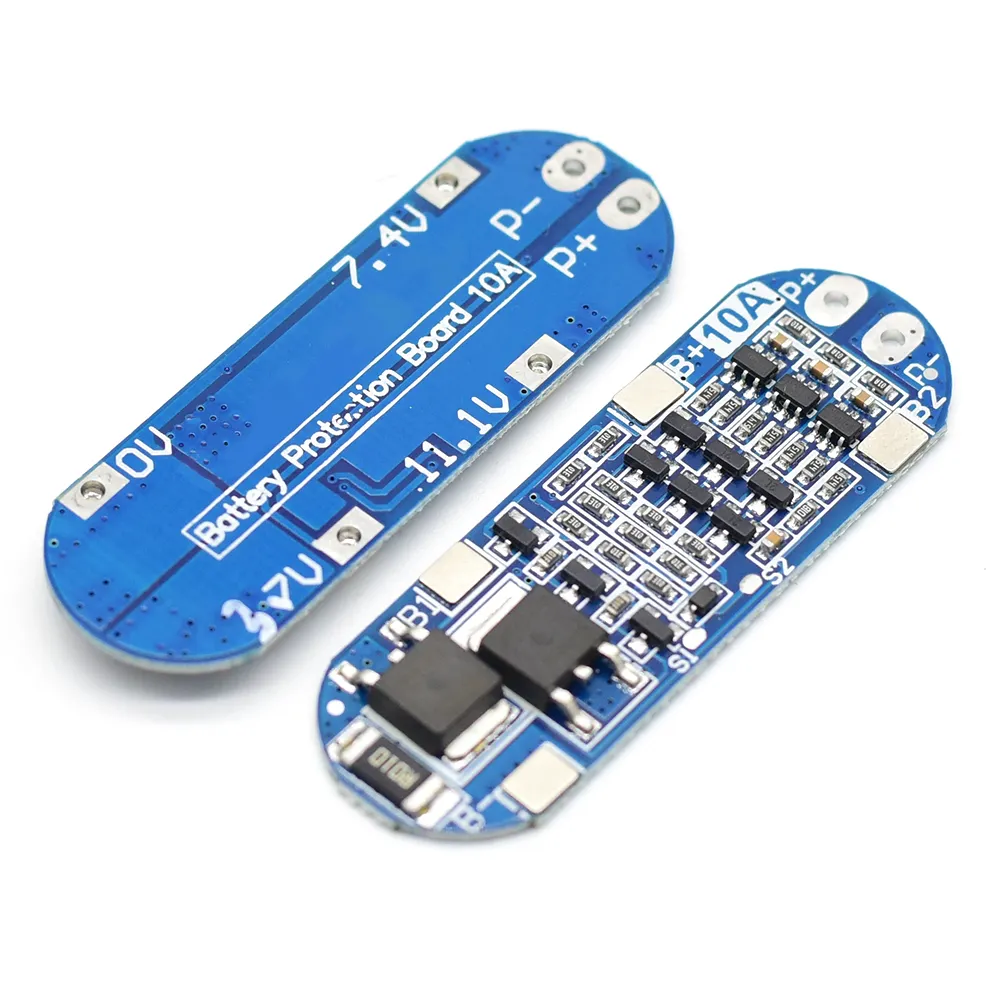

BMS 3S 10A 12.6V Lithium Battery Charger Protection Module
The BMS 3S 10A 12.6V Lithium Battery Charger Protection Module is designed to manage and protect 3-cell lithium battery packs connected in series. This module provides essential safety features including overcharge protection, overdischarge protection, overcurrent protection, and short-circuit protection to ensure safe and reliable battery operation. It is suitable for lithium-ion and lithium-polymer battery applications requiring stable battery management.
The module supports battery packs with a nominal voltage of 11.1V and a fully charged voltage of 12.6V. Its compact PCB design allows easy integration into portable electronics, DIY battery packs, robotics, solar systems, LED lighting, and backup power applications. The BMS automatically balances charging and discharging protection functions, helping extend battery life and improve overall system safety.
Features:
- Multi-Protection.
- Self-Recovery.
- Efficient Design.
- Compact Build.
Specifications:
| Parameter | Value |
|---|---|
| Configuration | 3S (3 cells in series) |
| Nominal Voltage | 11.1V (discharge) / 12.6V (charge) |
| Continuous Current | 6-8A |
| Peak Current | 9-10A |
| Quiescent Current | <30µA |
| Internal Resistance | <100mΩ |
| Operating Temperature | -40°C to +50°C |
| Dimensions | 54mm x 17.5mm x 4mm |
| Weight | 5 g |
Applications:
- Portable Power.
- Renewables.
- DIY Electronics.
