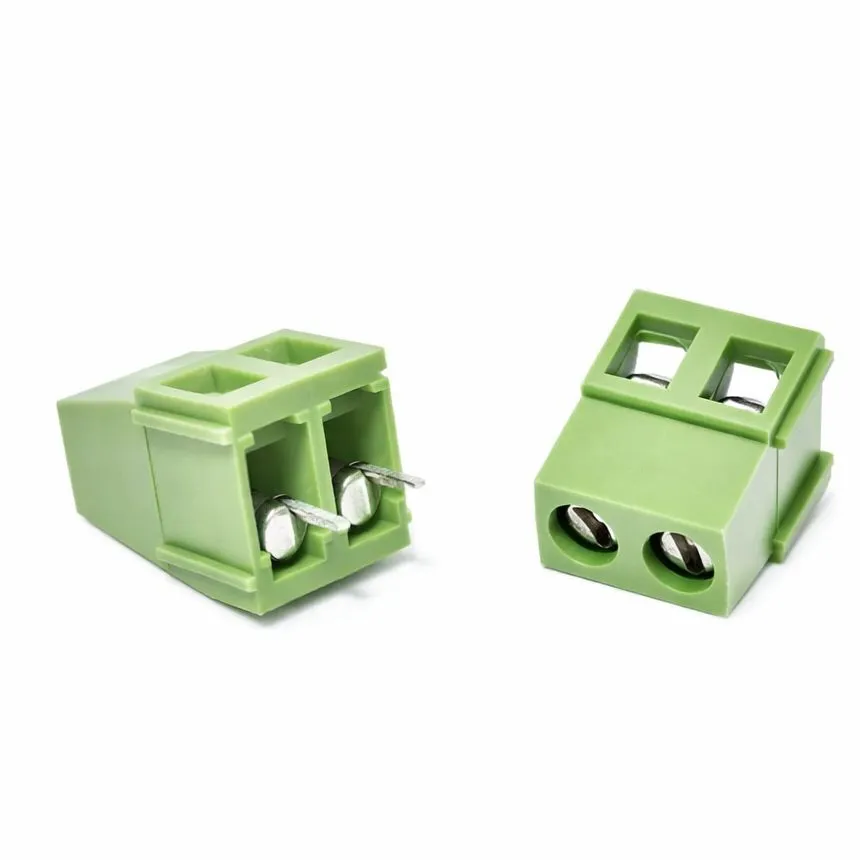

KF128-5-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch
The KF128-5-2P is a compact two-pole screw terminal block in the KF128 family, featuring a 5.00 mm pitch and green insulating housing. It’s designed for reliable wire-to-board connections where moderate current and voltage are required — for example power inputs, sensor lines, and control wiring on PCBs and small enclosures. The screw clamp provides mechanical strain relief and a secure electrical contact while still allowing the wire to be removed or replaced easily.
This terminal block is suitable for through-hole PCB mounting and is commonly used in industrial controllers, power supplies, household appliances, and communication equipment. For detailed mechanical drawings, recommended wire cross-section (AWG/mm²).
Features:
- 2-pole screw clamp design.
- 5.00 mm (0.197″) pitch (standard spacing).
- Removable / serviceable wire connection.
- Green insulating body (industry standard color).
- Through-hole PCB mounting for reliable mechanical retention.
- Good choice for moderate power and signal lines.
Specifications:
| Parameter | Value |
|---|---|
| Series / Model: | KF128-5-2P |
| Number of poles: | 2 |
| Pitch: | 5.00mm |
| Rated Voltage: | 300V |
| Rated Current: | 10A |
| Mounting: | Through-hole (PCB) |
| Contact / Clamp type: | Screw clamp |
| Housing color: | Green |
| Typical body material: | Insulating plastic / Nylon |
| Terminals: | Tin / plated brass (varies by vendor) |
Applications:
- Low-voltage power connections on PCBs.
- Power supplies and chargers (input/output).
- Industrial control and automation panels.
- Motor controllers and driver boards (moderate current).
- Sensor and actuator wiring.
Packages:
- 1x KF128-5-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch.
