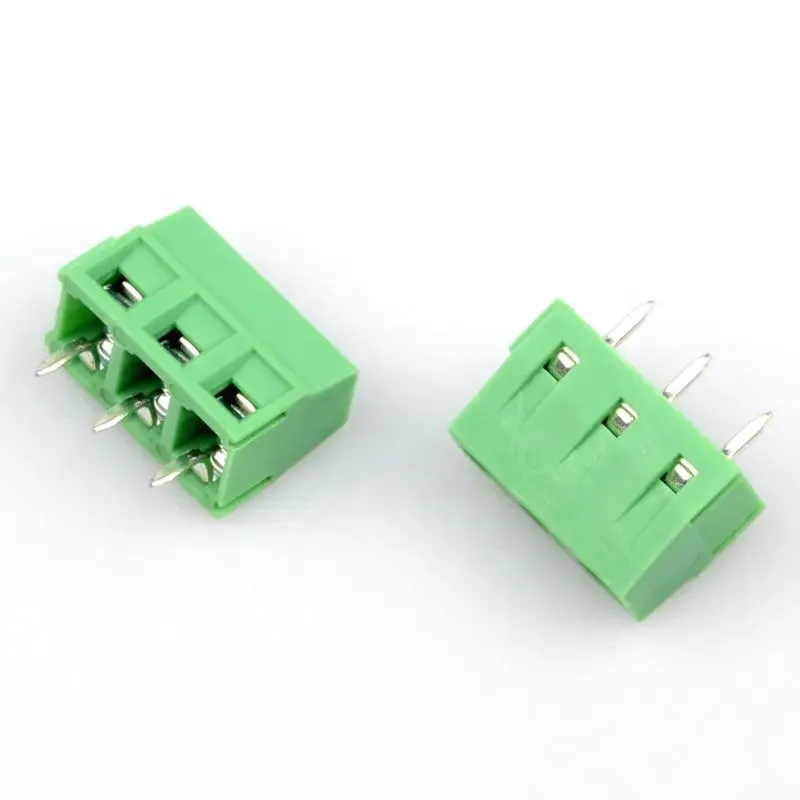

KF127-5.0-3P Green Terminal Block 300V/10A 3 Pins 5mm Pitch

The KF127-5.0-3P Green Terminal Block is a high-quality electrical connector designed for secure and efficient wire-to-board connections in a variety of electronic and electrical applications. This 3-pin terminal block features a 5.0mm pitch between pins, allowing for compact installation without compromising connection stability. Rated for 300V and 10A, it is suitable for low- to medium-power circuits, ensuring reliable performance in both industrial and consumer electronics. The green housing is made from durable, flame-retardant plastic for enhanced safety and visibility during installation. With screw-type terminals, it supports easy and repeatable wiring, accommodating solid and stranded wires. The KF127-5.0-3P is ideal for use in power supplies, control panels, automation systems, and LED drivers where dependable electrical connections are essential.

Features:

• 3-Pin Design where Ideal for simple and compact wire connections.
• 5.0mm Pitch where Standard spacing for compatibility with a wide range of PCB layouts.
• Screw-Type Terminals where Provides strong and secure wire clamping; easy to wire and rewire.
• Rated for 300V / 10A where Suitable for low- to medium-voltage and current applications.
• Durable Green Housing where Made from flame-retardant thermoplastic for safety and easy identification.
• PCB Mounting where Straight pin layout for through-hole PCB soldering.
• Compact and Modular where Can be used individually or combined with other blocks for multi-pin configurations.

Specifications:

• Terminal Block Type: Screw Type
• Model: KF127-5.0-3P
• Mounting Type: Through-Hole / PCB Mount
• Mounting Style: Straight
• Wire Connection: Screw Clamp
• Wire Entry Angle: 180°

• Material:

  • Housing Material: PA66, UL94V-0 rated (flame-retardant)
  • Clamp Material: Brass with nickel plating
  • Pin Material: Brass with tin plating
• Soldering Temperature: 250°C max for 5 seconds
• Number of Positions: 3position
• Number of Pins: 3pin
• Pitch: 5mm
• Rated Voltage: 300V
• Rated Current: 10A
• Wire Capacity Range: 26–14 AWG / 0.2mm²–2.5mm²
• Contact Resistance: ≤20 mΩ
• Insulation Resistance: ≥500 MΩ at DC 500V
• Withstanding Voltage: AC 2000V for 1 minute
• Torque: 0.4–0.5 Nm (3.5–4.5 lb.in)
• Operating Temperature: -40°C to +105°C
• Color: Green

Dimensions:

Applications:

• Power Supply Units (PSUs).
• Control Panels and Industrial Automation.
• LED Drivers and Lighting Systems.
• Consumer Electronics and Appliances.
• Test and Measurement Equipment.
• Building Automation and HVAC Systems.
• Security and Access Control Systems.
• Communication Equipment and Networking Devices.
