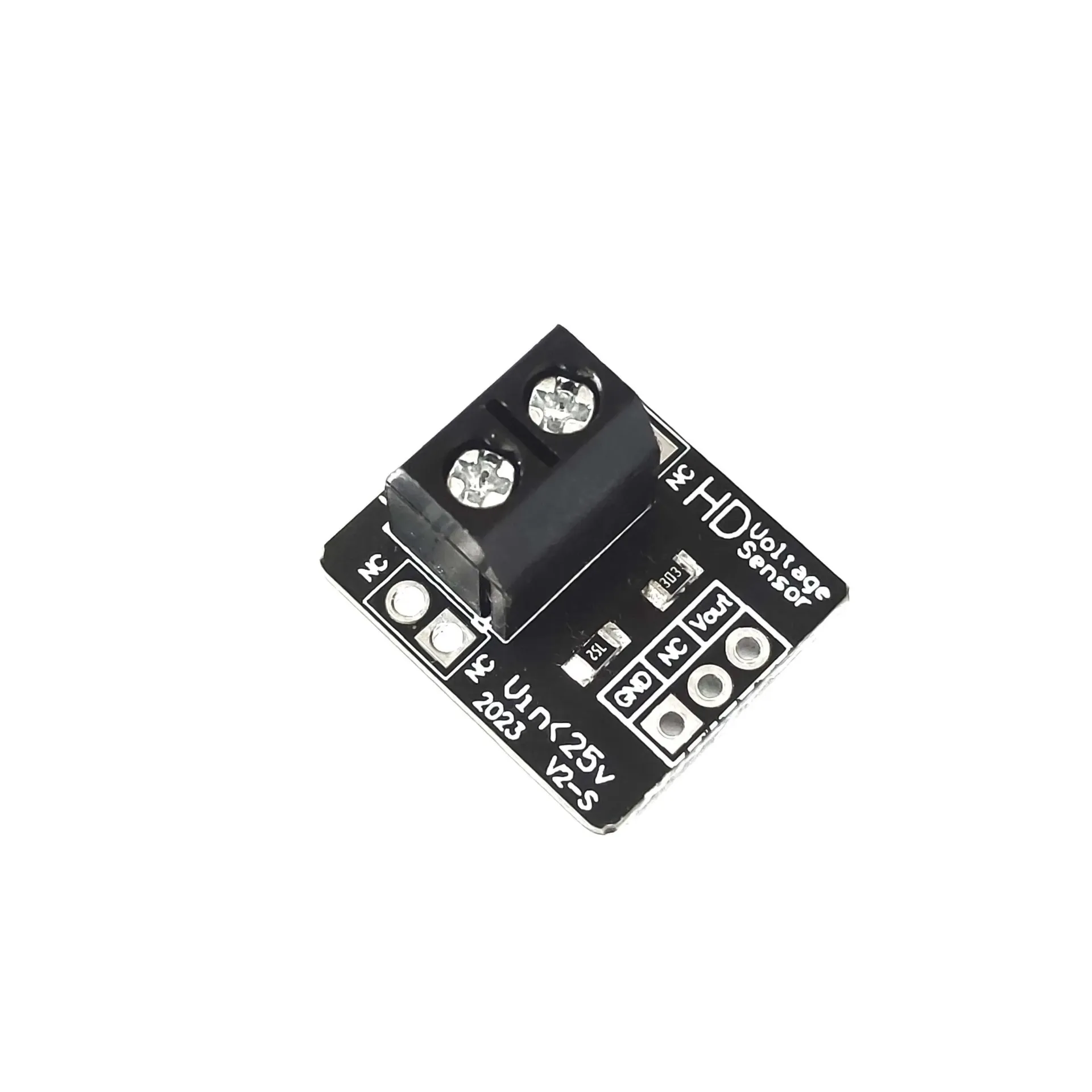

Voltage Sensor Module DC 0-25V – HD Version Compatible with Breadboard

The voltage sensor module is a small size 0-25 DC voltage sensing device. The design of the module is based on a resistive voltage divider circuit. It is a voltage sensor module that reduces the input voltage signal by a factor of 5 and generates a corresponding analog output voltage with respect to step down voltage factor. This voltage measurement circuit is small and portable and can be used to detect under and over-voltage faults in electrical circuits.

Voltage Sensor Module Pinout Configuration:

Voltage Detection Sensor Module Features & Specifications:

• Input Voltage: 0 to 25V
• Voltage Detection Range:  0.02445 to 25
• Analog Voltage Resolution: 0.00489V
• Needs no external components
• Easy to use with Microcontrollers
• Small, cheap, and easily available
• Dimensions: 20 × 17 × 14 mm

Brief about Voltage Sensor Module

The voltage Detection Sensor Module is a simple and very useful module that uses a potential divider to reduce any input voltage by a factor of 5. This allows us to use the Analog input pin of a microcontroller to monitor voltages higher than it capable of sensing. For example, with a 0V – 5V Analog input range, you are able to measure a voltage up to 25V. This module also includes convenient screw terminals for easy and secure connections of a wire.

The internal circuit diagram of the Voltage Sensor Module is given below.

The voltage circuit consists of a voltage divider circuit of two resistors in which R1 is 30K and R2 is 7.5K.

Applications:

• Battery Voltage Monitoring.
• Power Supply Systems.
• Solar Energy Systems.
• Uninterruptible Power Supplies (UPS).
• Electric Vehicle Battery Management.
• Arduino Projects.
• Raspberry Pi Projects.
• DIY Electronics Projects.
• Voltage Level Detection.
• Over-voltage Protection Circuits.

Package Contents:

• 1x Voltage Sensor Module DC 0-25V – HD Version Compatible with Breadboard
• 1x  3 Pin header
• 2x  2 Pin header
