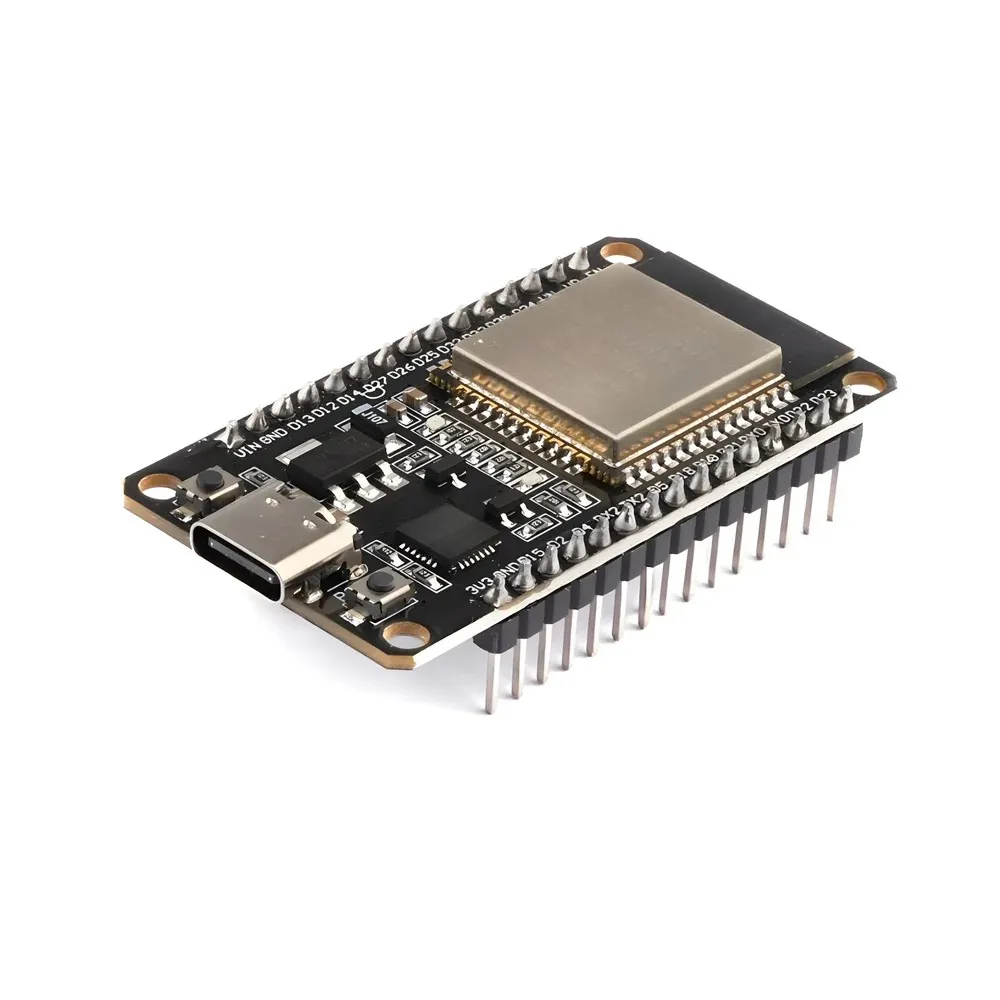

ESP32 Development Board WIFI and Bluetooth 30-Pin with CP2102 Type-C USB

ESP32 Development Board WIFI and Bluetooth 30-Pin with CP2102 Type-C USB

(0 review)

The ESP32 Development Board WIFI and Bluetooth 30-Pin with CP2102 Type-C USB is a robust and feature-rich platform designed for a wide range of applications.

Add to cart
Buy now
Add to wishlist
Price
350.00 LE 350.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
ESP32 Development Board WIFI and Bluetooth 30-Pin with CP2102 Type-C USB

The ESP32 Development Board is a versatile and powerful microcontroller board designed for a wide range of applications, particularly in the Internet of Things (IoT) and embedded systems. At its core is the ESP32-WROOM-32 module, which integrates a dual-core Tensilica LX6 microprocessor, providing robust processing power with clock frequencies UP to 240 MHz. This allows developers to handle complex tasks efficiently, making it suitable for both prototyping and production-grade applications.

This board stands out with its built-in Wi-Fi and Bluetooth capabilities, supporting both classic Bluetooth and Bluetooth Low Energy (BLE). These features enable seamless connectivity to networks and other devices, making it ideal for wireless communication projects such as smart home systems, wearable devices, and industrial automation solutions. The Wi-Fi supports the 802.11 b/g/n standards, offering data rates up to 150 Mbps, while the Bluetooth V4.2 ensures compatibility with a wide range of devices.

Features:
  • Adjustable clock frequency from 80 MHz to 240 MHz.
  • Built-in Wi-Fi (802.11 b/g/n).
  • Built-in Bluetooth (Classic and BLE).
  • Type-C USB interface with CP2102 serial converter.
  • 30 GPIO pins supporting UART, SPI, I2C, etc.
  • 4 MB flash memory.
  • 520 KB SRAM.
  • Ultra-low power consumption (<5 µA in deep sleep).
  • Supports multiple development environments, including Arduino IDE.
Specifications:
  • ESP-WROOM-32 32-bit 240 MHz microprocessor
  • Supply Voltage:3.3V-5V
  • Pins: 30 Pins
  • 2.4 GHz Wi-Fi
  • Bluetooth: 4.2
  • 4 MByte (32Mbit) SPI Flash
  • 448 KB ROM
  • 520 KB SRAM
  • 16 KB SRAM in RTC
  • PCB Antenna
  • Powered via USB Type-C Connector, or via pin header
  • Reset and User/Firmware buttons
  • User and Power LED
  • USB Type-C connector
  • Virtual USB port provided by CH340 for debugging and firmware upgrade
  • Assembled with ESP-WROOM-32 module
  • Dimensions: 52 x 28.5mm
Pin Configuration:

Applications:
  • Home automation.
  • Internet of Things (IoT) devices.
  • Robotics.
  • Wireless industrial control.
  • Wireless positioning systems.
Package Include:

1x ESP32 Development Board WIFI and Bluetooth 30-Pin with CP2102 Type-C USB.

Data Sheet:

ESP32
