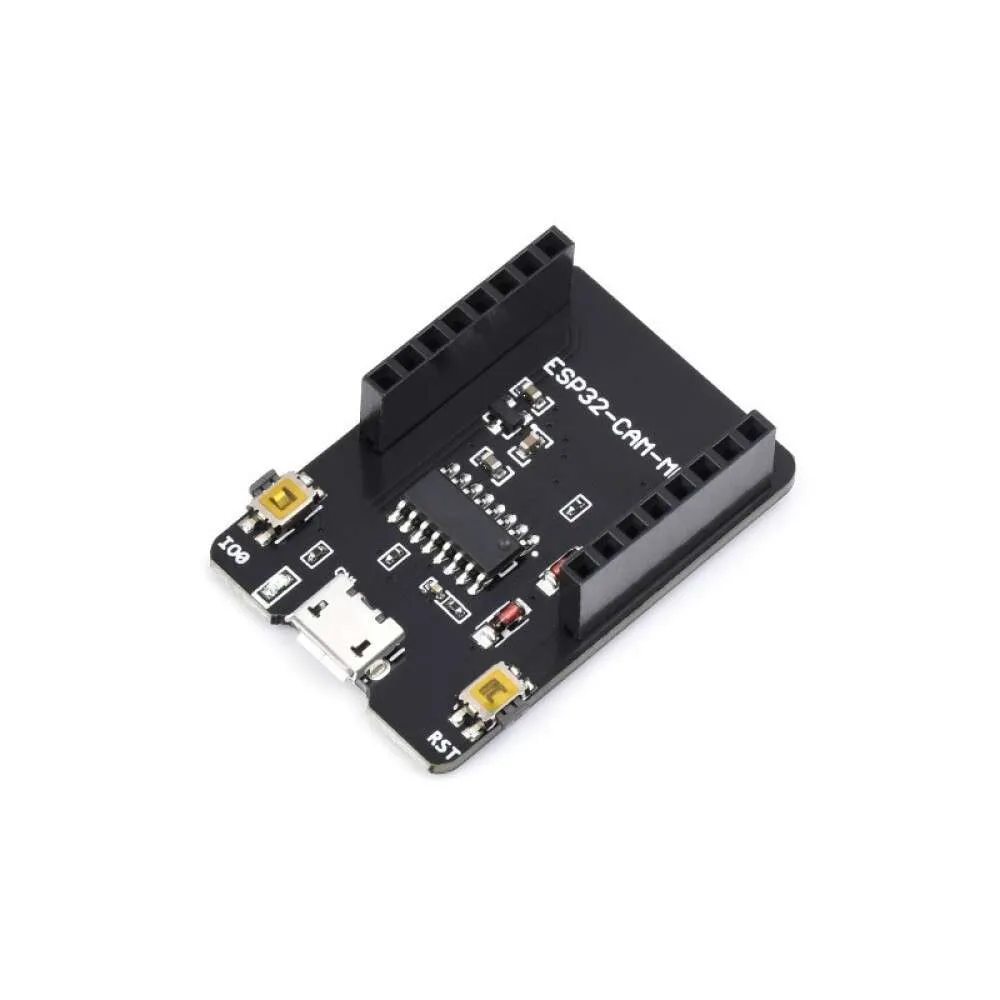

ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM
The ESP32-CAM-MB MICRO USB Download Module is a vital tool for developers utilizing the ESP32-CAM development board, offering a seamless and efficient solution for programming and debugging. This compact module eliminates the need for an external FTDI adapter by providing a direct USB interface, simplifying the development process for both novice and experienced users. Equipped with a CH340 USB-to-serial chip, the ESP32-CAM-MB facilitates reliable code uploads and serial communication through a micro USB port. The module includes a reset button for quick board resets and a BOOT (IO0) button to enter flashing mode, essential for programming the ESP32-CAM. Its design aligns perfectly with the ESP32-CAM’s form factor, ensuring a secure and unobtrusive connection, making it an indispensable accessory for streamlined project development.
Note: The camera module is not included with the board.
Features:
- Supports WiFi Image Upload.
- Support multiple sleep modes.
- Embedded Lwip and FreeRTOS.
- Support secondary development.
- Support STA/AP/STA+AP working mode.
- Support OV2640 and OV7670 cameras, built-in flash.
- Support Smart Config/AirKiss one-click network configuration.
- Clock speed up to 160 MHz, Computing power up to 600 DMIPS.
- Support for serial port local and remote firmware upgrades (FOTA).
Specifications:
| Model | ESP32-CAM-MB |
|---|---|
| Color: | Black |
| Chipset | CH340 |
| Connectivity | Micro-USB |
| IO Port | 9 |
| Power Supply(V) | 5 |
| SPI Flash | Default 32Mbit |
| RAM | built-in 520KB SRAM+4MB PSRAM |
| Wi-Fi Mode | 802.11b/g/n/e/i |
| Bluetooth Version | Bluetooth 4.2 BR/EDR and BLE standards |
| Spectrum range(MHz) | 2412~2484MHz |
| Support TF card | maximum support 4G |
| Support interface | UART, SPI, I2C, PWM |
| Serial Port Baud-rate | Default 115200 bps |
| Dimension | 40mmx27mmx10mm |
Applications:
- Programming and debugging ESP32-CAM-based projects.
- Developing IoT applications with camera functionality.
- Prototyping wireless image and video transmission systems.
- Creating smart surveillance systems for home or industrial use.
