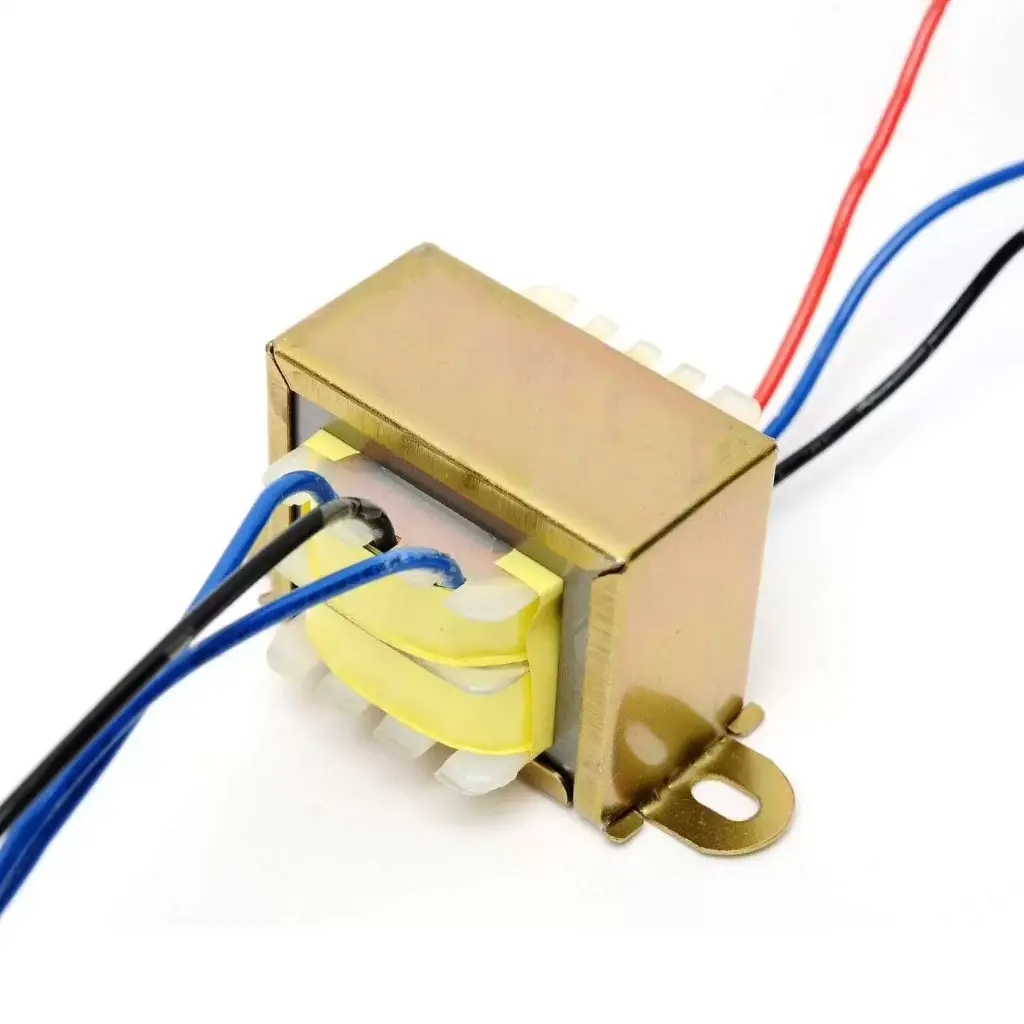

Center Tapped Step Down Transformer 220V 12V-0-12V 300mA

Center Tapped Step Down Transformer 220V 12V-0-12V 300mA

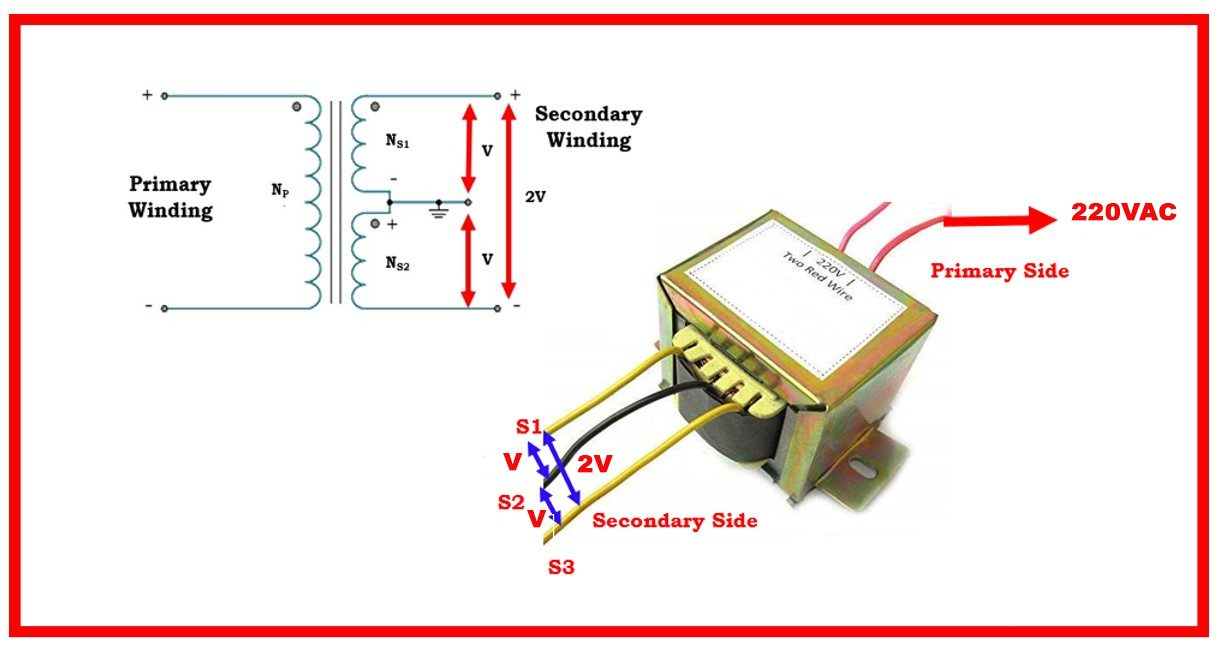

A Center-Tapped Step-Down Transformer 220V 12V-0-12V 300mA is a dual 12VAC output with a center tap (0V), providing 12V-0-12V at 300mA current capacity. It is commonly used in power supplies, rectifiers, and low-voltage AC applications. The center tap allows for both 12V and 24V rectified outputs, making it ideal for DC power circuits, amplifiers, and embedded systems.

Features:

• Center Tap Design where Enables dual-polarity output (useful for positive and negative supply rails).
• Step-Down Function where Safely reduces high mains voltage (220VAC) to a much lower voltage for electronics.
• Low Power Consumption where Ideal for small, low-current devices and circuits.
• Isolated Output where Provides electrical isolation between primary and secondary, enhancing safety.
• Durable Construction where Made with high-quality copper windings and laminated steel cores for long life.
• Compact Size where Easy to integrate into small enclosures or DIY projects.

Specifications:

• Transformer Type: Center Tapped Step Down
• Primary Voltage: 220VAC
• Frequency: 50Hz / 60Hz
• Secondary Voltage: 12V-0-12VAC
• Current Rating: 300mA
• Power Rating(Approx.): 7.2VA
• Core Type: Laminated Iron Core
• Winding Material: Copper Wire
• Mounting Type: Chassis
• Insulation Resistance: High dielectric strength for safety
• Insulation Class: Class B  (up to 130°C)
• Efficiency:  85% – 90%

Applications:

• Low-power DC power supplies
• Audio amplifier circuits
• DIY electronics projects
• Embedded systems
• Battery charging circuits

Package Contents:

• 1 X  Center Tapped Step Down Transformer 220V 12V-0-12V 300mA
