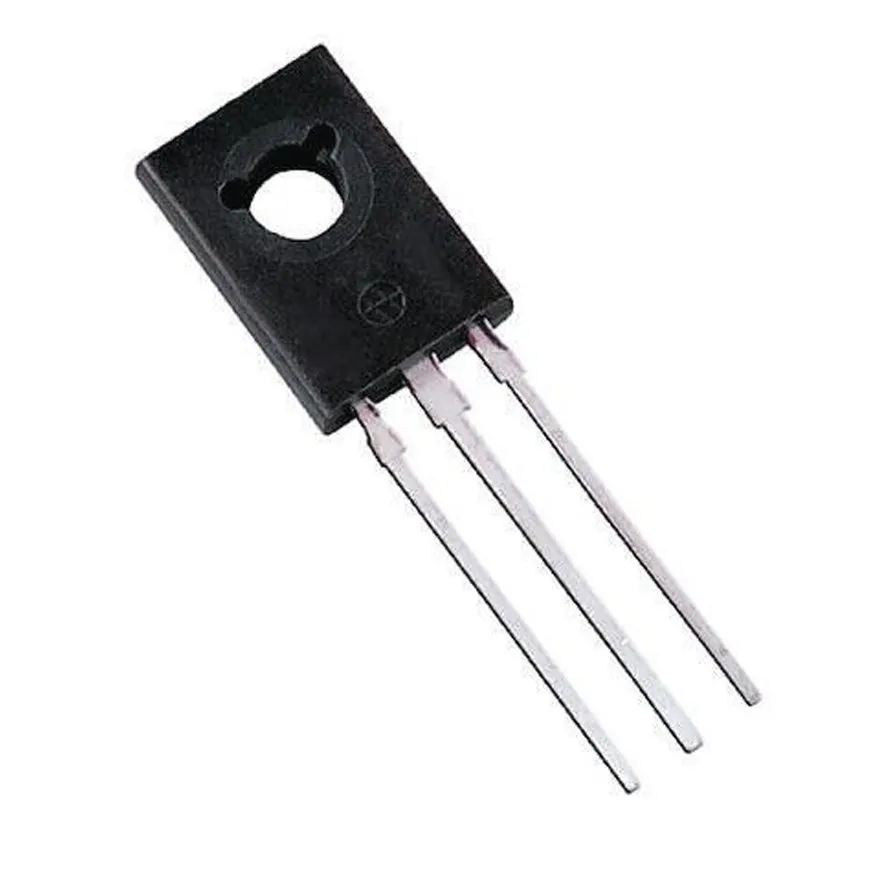

BD137 NPN Bipolar BJT Transistor 60V 1.5A TO-126-3

BD137 NPN Bipolar BJT Transistor 60V 1.5A TO-126-3

(0 review)

The BD137 NPN Bipolar BJT Transistor (60V, 1.5A, TO-126) is a high-power, general-purpose transistor used for switching and amplification in electronic circuits

Add to cart
Buy now
Add to wishlist
Price
10.00 LE 10.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
BD137 NPN Bipolar Medium Power Transistor – TO-126 Package

Designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits. BD137 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. This Product is known as BD137, BD137 NPN Bipolar Medium Power Transistor.

Features/Specs:
  • Product Type: BJTs – Bipolar Transistors
  • Product Category: Bipolar Transistors – BJT
  • Transistor Polarity: NPN
  • Configuration: Single
  • Collector- Emitter Voltage VCEO Max: 60 V
  • Collector- Base Voltage VCBO: 60 V
  • Emitter- Base Voltage VEBO: 5 V
  • Collector-Emitter Saturation Voltage: 500 mV
  • Maximum DC Collector Current: 1.5 A
  • Pd – Power Dissipation: 8 W
  • Continuous Collector Current: 1.5 A
  • Maximum Operating Temperature: +150°C
  • Mounting Style: Through Hole
  • Package/Case: TO-126-3
Applications:
  • Audio Amplifiers
  • Switching Loads under 1.5A or 1500mA
  • Battery Chargers Circuits
  • Power Supply Circuits
  • Motor Driver Circuits
  • Darlington Pairs
BD135 Datasheet
