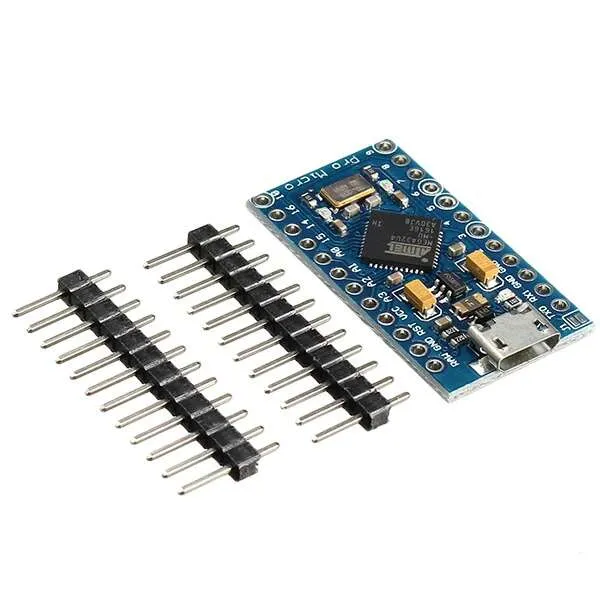

Arduino Pro Micro ATmega32U4-MU 5V/16MHz Module with Micro USB

Arduino Pro Micro ATmega32U4-MU 5V/16MHz Module with Micro USB

The Pro Micro is an Arduino compatible board based on the ATmega32U4 and the smallest member of the Arduino family.  It is similar to the Arduino Micro, but it is even smaller.  It is breadboard friendly and the small size allows you to place the Pro Micro into your breadboard rather than jumpering from the board over to a breadboard.  The small size also makes them useful for embedding into a permanent project.

Features :

• Microcontroller: ATmega32U4, providing robust processing power.
• Operating Voltage: 5V, suitable for most Arduino projects.
• Clock Speed: 16MHz, ensuring fast performance.
• Digital I/O Pins: 12, with 5 supporting PWM for precise control.
• Analog Input Pins: 9 channels with 10-bit ADC for accurate sensor readings.
• Flash Memory: 32KB (4KB used by bootloader), ample for complex sketches.
• SRAM: 2.5KB, supporting efficient data handling.
• EEPROM: 1KB, for persistent data storage.
• USB: Micro-USB port for programming and power, enhancing connectivity.
• Dimensions: 33mm x 18mm, perfect for compact designs.
• Arduino IDE Support: Compatible with version 1.0.1+, simplifying development.
• Power Protection: Includes PTC fuse and diode protection for safe operation.

Specifications :

Applications :

• Custom USB Input Devices
• Small-Scale Robotics
• Wearable Electronics
• Data Logging
• Prototyping and Education

Package Includes :

• 1 x Arduino Pro Micro ATmega32U4-MU 5V/16MHz Module with Micro USB
• 2 x Male Header Strips
