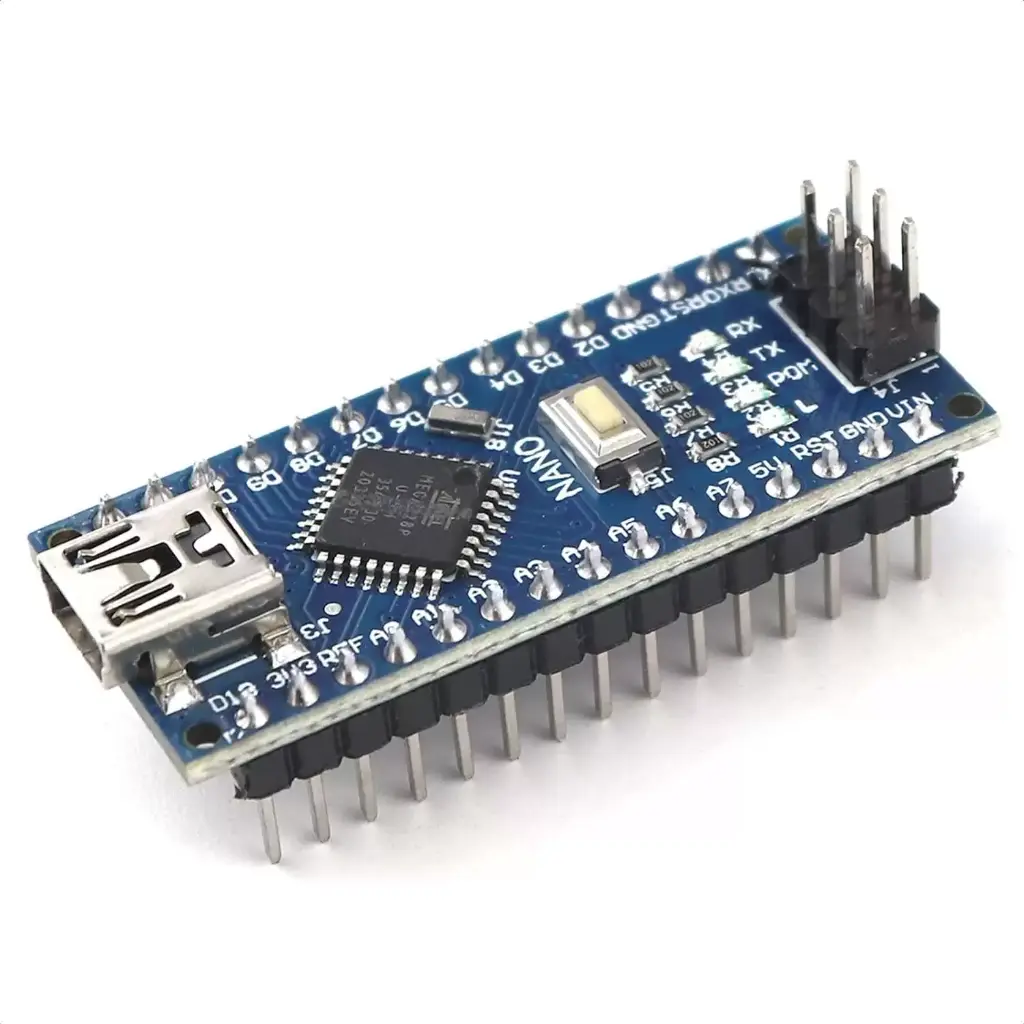

Arduino Nano with CH340 Uplaoder – Mini USB + cable

Arduino Nano with CH340 Uplaoder – Mini USB + cable

(0 review)

Arduino Nano ATmega328PB-U with CH340C is a compact 5V, 16MHz board with Mini USB, offering enhanced I/O and performance for versatile projects.

Add to cart
Buy now
Add to wishlist
Price
250.00 LE 250.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Arduino Nano ATmega328PB-U CH340C Driver 5V 16MHz Mini USB

The Arduino Nano ATmega328PB-U CH340C Driver 5V 16MHz Mini USB is a compatible version of the latest iteration of the Arduino Nano and is a miniature breadboard friendly version of the popular Uno.

The small size allows you to place the Nano into your breadboard rather than jumping from the board over to a breadboard.  The small size also makes the Nano useful for putting down on a solder type breadboard or building into a permanent circuit.

The board operates at 5V which can be supplied via the Vin pin or through the USB port connection.  The power source is selected automatically if both are available.  If the Vin input is used, it is recommended to use a supply between 7-12V.

Higher input voltages will cause the on-board regulator to work harder and may cause it to overheat. Like all Arduino and compatible boards, it can be programmed using the Arduino IDE via the USB port.

Features :
  • Upgraded ATmega328PB-U Microcontroller More I/O pins and features than the standard ATmega328P.
  • Compact and Breadboard-Friendly Ideal for space-constrained and embedded projects.
  • Stable CH340C USB-to-Serial Converter Reliable data transfer with minimal external components.
  • Mini USB Port Sturdy and commonly used in legacy and industrial setups.
  • 5V Logic Operation Compatible with a wide range of modules and sensors.
  • 16 MHz Clock Speed Delivers solid performance for most real-time tasks.
  • Expanded Peripherals Dual UART, additional timers, and more interrupts compared to ATmega328P.
  • Low Power Usage Suitable for battery-operated or low-energy devices.
  • Full Arduino IDE Support Easy programming with a vast library ecosystem.
  • Cost-Effective Upgrade Option Offers more power without significant cost increase.
Specifications :
MicrocontrollerATmega328PB
Serial to USB ConverterCH340C
Operating Voltage5V
Input Voltage (recommended)7-12V
Digital I/O Pins14
PWM I/O Pins (Shared with Digital I/O)6
Analog Input Pins8
DC Current per I/O Pin20mA recommended (40mA max)
DC Current which can be drawn from 3.3V Pin25mA
Flash Memory32 Kbytes
SRAM2 Kbytes
EEPROM1 Kbytes
Clock Speed16MHz
Power Consumption200mA
Built-in LEDAttached to digital I/O Pin 13
USB Connector StyleMicro USB
Board Dimensions45mm X 18mm
Pinout :

Steps to install CH340 drivers on Windows operating system.

Windows
  1. Download the Windows CH340 Driver
  2. Unzip the file
  3. Run the installer that you unzipped
  4. In the Arduino IDE when the CH340 is connected you will see a COM Port in the Tools > Serial Port menu, the COM number for your device may vary depending on your system.
Applications:
  • DIY Electronics Projects.
  • Home Automation.
  • IoT Projects (with additional modules).
  • Robotics.
  • Wearable Tech (if battery-powered properly).
  • Data Logging.
  • Education & Prototyping.
  • MIDI/USB Controller Projects.
  • Industrial Automation (small scale).
Package Contents:
  • 1 X  Arduino Nano ATmega328PB-U CH340C Driver 5V 16MHz Mini USB
