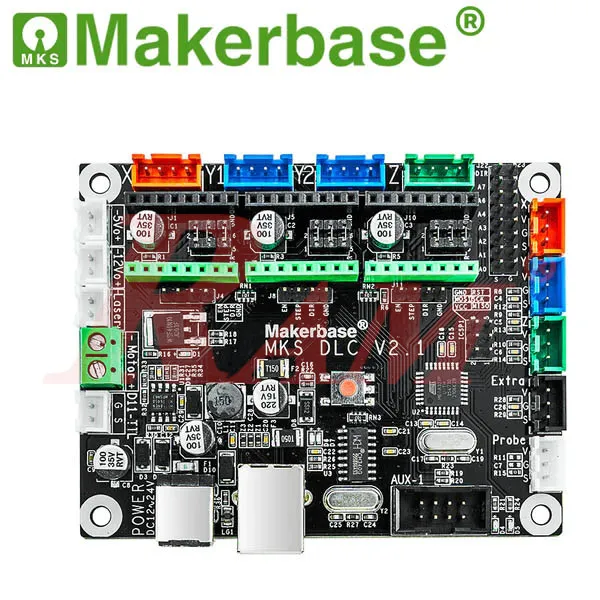

DLC GRBL CNC Shield controller motherboard for engraving laser control - 3 axis MKS DLC is a controller board developed by MAKERBASE for LASER engraving and small CNC machines. MKS DLC GRBL – Laser & CNC Controller
- MKS DLC GRBL is a controller mainboard, which works with the ATmega 328p microprocessor.
- Main Board developed for laser engraving, CNC, writing plotter and other small machines..
- It has complete interfaces and can be controlled externally.
Features of the MKS DLC v2.2
- ATmega 328p Processor
- Size 90 x 70 mm
- Hole Size 82 x 62 mm
- Stepper Driver supported : A4988 , DRV8825 , TMC2208, TMC2100, LV8729, TB6600
- File Format: Gcode
- Recommended Software: GrblController, benbox, mDraw, Xloader
- 4 x motors (3 axes): X Y1, Y2, Z.
- Supports virtually all SteepStick: DRV8825, TMC2100, LV8729, TMC2208, etc.
- 3 Stepper Motor external drivers
- Can be connected. USB
- 3 x port Endstops (X, YZ )
- Laser control ports: TTL / PWM, 12V, 5V1
- Servomotor control port and 1 DCA motor port:
- Power: 12Vdc
- Auxiliary port (For TFT screen or other options)
