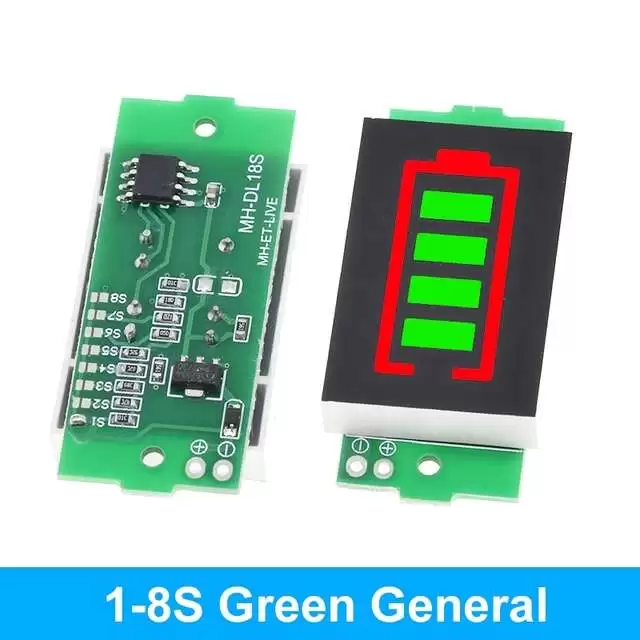

Battery Level Indicator Module 1S-8S (Green General)
The Battery Level Indicator Module 1S-8S (Green General) is an essential tool for monitoring the voltage levels of lithium-ion batteries in systems ranging from 1S to 8S. This module is ideal for use in electric vehicles, solar power systems, and other battery-powered applications. The LED display provides clear and real-time voltage monitoring, ensuring you can easily assess the battery’s charge level at a glance.
Features:
- Supports 1S to 8S lithium battery packs with automatic voltage scaling.
- Bright green 4-bar LED display for clear capacity indication.
- Ultra-low power consumption of only 5 mA.
- Wide operating voltage range of 3 V to 34 V.
- Simple 2-wire parallel connection – no extra components needed.
- ±2% voltage accuracy for reliable monitoring.
Specifications:
| Parameter | Value |
|---|---|
| Supported Cells | 1S-8S |
| Voltage Range | 3V-34V |
| Current Consumption | 5mA |
| Display Type | Green 4-bar LED graph |
| Accuracy | ±2% |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 43mmx20mmx8mm |
| Connection | Parallel to battery (B-/B+) |
| Compatibility | Li-ion, LiPo, LiFePO4 (within voltage range) |
Applications:
- Electric vehicle and e-scooter battery monitoring.
- RC drones, cars, and boats for real-time power status.
- DIY lithium battery packs and power banks.
- Solar energy storage and off-grid systems.
- Arduino and Raspberry Pi battery management projects.
- Portable tools and medical equipment.
- Low-voltage alarm and protection circuits.
Package Include:
1x Battery Level Indicator Module 1S-8S (Green General).
Warm sound tips: This model is not waterproof. If it is used outdoors, please waterproof it, because the electronic components should be used in a dry environment. Lithium-ion battery The battery indicator board can be used in Ni-MH batteries, as long as the required voltage is within the range of the parameter list. How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube displays the real-time battery power.
Battery-type power display, select the corresponding pad on the tin, and you can detect the battery voltage corresponding to 1S-8S, very convenient.
Note: 1S pad is already solder
