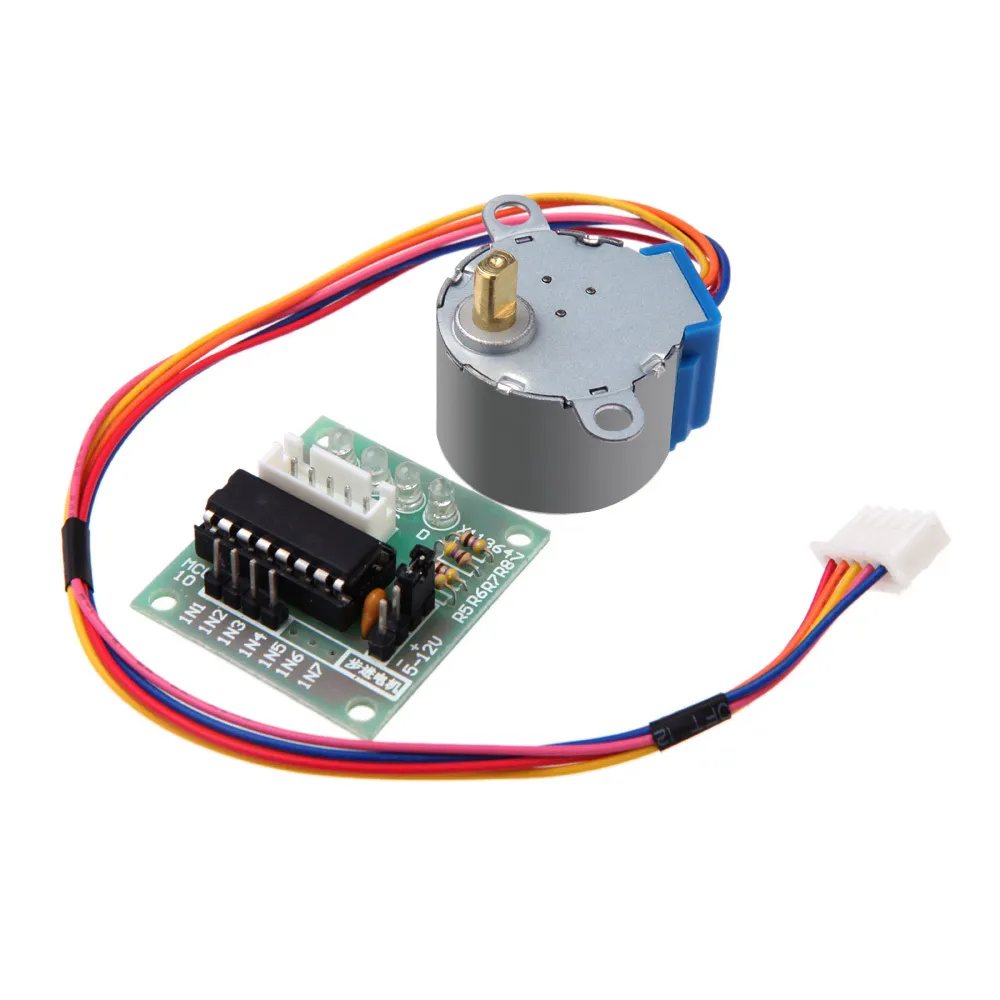

28BYJ-48 Stepper Motor 5V with ULN2003 Driver Module

28BYJ-48 Stepper Motor 5V with ULN2003 Driver Module

(0 review)

28BYJ-48 unipolar stepper motor 5V with ULN2003 driver board, ideal for precise motion control in microcontroller projects.

Add to cart
Buy now
Add to wishlist
Price
130.00 LE 130.00 LE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
28BYJ-48 Stepper Motor 5V with ULN2003 Driver Module

The Stepper Motor 5V with ULN2003 is a compact motion device combined with a matched driver module for easy and reliable integration in microcontroller and robotics projects. Typically based on the popular 28BYJ-48 unipolar stepper motor, this kit includes a dedicated ULN2003 Darlington transistor array driver board that amplifies control signals to safely drive the motor coils. Operating at 5 VDC, it delivers finely stepped motion with a geared reduction for increased torque and positional precision. This combination simplifies interfacing with Arduino, Raspberry Pi, ESP32, and similar development platforms, allowing for accurate control of rotation, speed, and direction in automation, robotics, and DIY applications.

Features
  • Includes 5V unipolar stepper motor with geared output for enhanced torque.
  • ULN2003 driver board with four Darlington transistor channels for coil driving.
  • Four LED indicators on driver board show coil activation status.
  • Standard 5-wire motor interface for plug-and-play connection.
  • Easy microcontroller integration (Arduino, Raspberry Pi, ESP series).
  • Compact and lightweight module suitable for prototyping and education.
Specifications
Motor TypeUnipolar stepper motor.
Connection Type5 Wire Connection (to the motor controller).
Voltage5-12V DC.
Frequency100 Hz.
Step ModeHalf-step mode recommended (8 step control signal sequence).
Step AngleHalf-step mode: 8 step control signal sequence (recommended) 5.625 degrees per step / 64 steps per one revolution of the internal motor shaft.

Full Step mode: 4 step control signal sequence 11.25 degrees per step / 32 steps per one revolution of the internal motor shaft.

Gear RatioManufacturer specifies 64:1.
Wiring to The ULN2003 ControllerA (Blue), B (Pink), C (Yellow), D (Orange), E (Red, Mid-Point).
Weight44g.
Package Included1 x 28BYJ-48 Stepper Motor 5V.
Applications
  • Stepper motor control in Arduino and microcontroller projects.
  • Small robotics and automated mechanisms.
  • CNC and positioning systems at hobby scale.
  • Teaching and prototyping motion control.
  • DIY electronics and embedded system projects.
Package Contents
  • 1x 28BYJ-48 stepper motor 5V.
  • 1x ULN2003 driver module.
