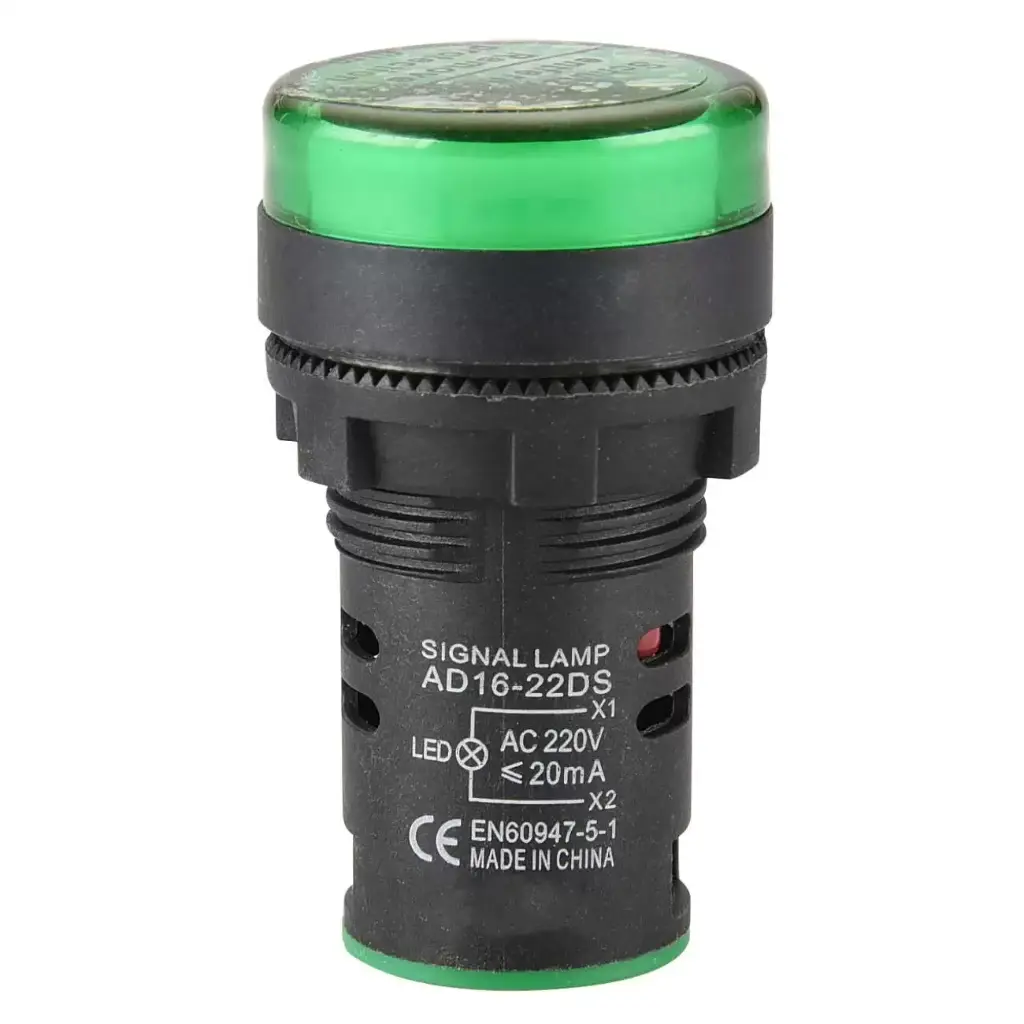

AD16-22DS Long Life Round Shape Green LED Indicator Lamp 22mm
Round Shape Green LED Indicator Lamp is a durable and energy-efficient 22mm panel-mounted light designed for various industrial and commercial applications. With its bright Green illumination and long lifespan, it provides reliable visual indication for status signaling in electrical and machinery systems.
Feature
- Fit for a 22mm hole and secure it with a screw ring.
- High-brightness LED for easy recognition. Screw-clamp for easy connection and strong conductivity.
- Widely used in electric power, telecommunications, machine tools, motors, and home appliances.
Dimensions
Specifications
| Specification | Value |
|---|---|
| Type | AD16-22DS |
| Voltage | 220VAC |
| Expected Life | 30,000 hours |
| Rated Current | 20mA |
| Insulating Resistance | 2MΩ |
| AC Voltage Fluctuation | ±20% |
| Operating Temperature | -25°C to +55°C |
| Width of Mounting Panel | ≤7mm |
Applications
- Industrial Control Panels.
- Power Distribution Systems.
- Automation Systems.
- Commercial Applications.
- Renewable Energy Systems.
- Marine and Automotive Use.
